PVS-14 | L3Harris Unfilmed White Phosphor
PVS-14 | L3Harris Unfilmed White Phosphor
PVS-14 | L3Harris Unfilmed White Phosphor
PVS-14 | L3Harris Unfilmed White Phosphor

PVS-14 | L3Harris Unfilmed White Phosphor

Regular price$4,295.00
/
Shipping calculated at checkout.

SPEC KEY:

Hand-Select Night Vision includes actual specs of the tube(s) included in your night vision device as listed on the tube manufacturer's data sheet. The data sheet serves as a certificate of conformance to demonstrate that tubes meet or exceed their quality and performance standards.

For a breakdown of L3Harris' various tube options and associated minimum performance, please see our guide to Minimum Specifications and Spots. Guides discussing specs are available under the "Resources" tab

FOM = Figure of Merit

SNR = Signal to Noise (Numeric)

RES (or CR) = Center Resolution (line pairs / mm)

HALO = Halo (mm)

EBI = Equivalent Background Illumination

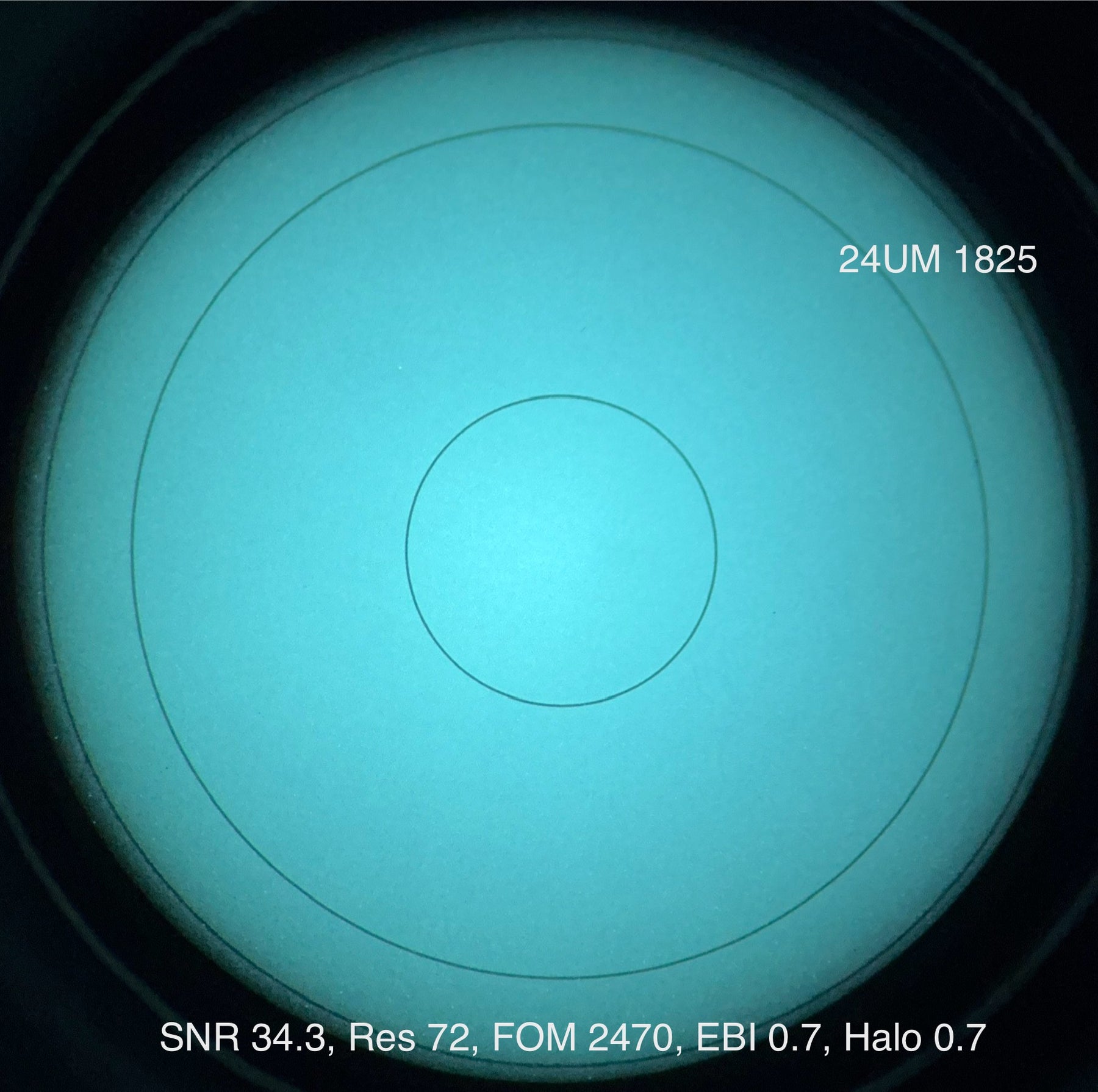

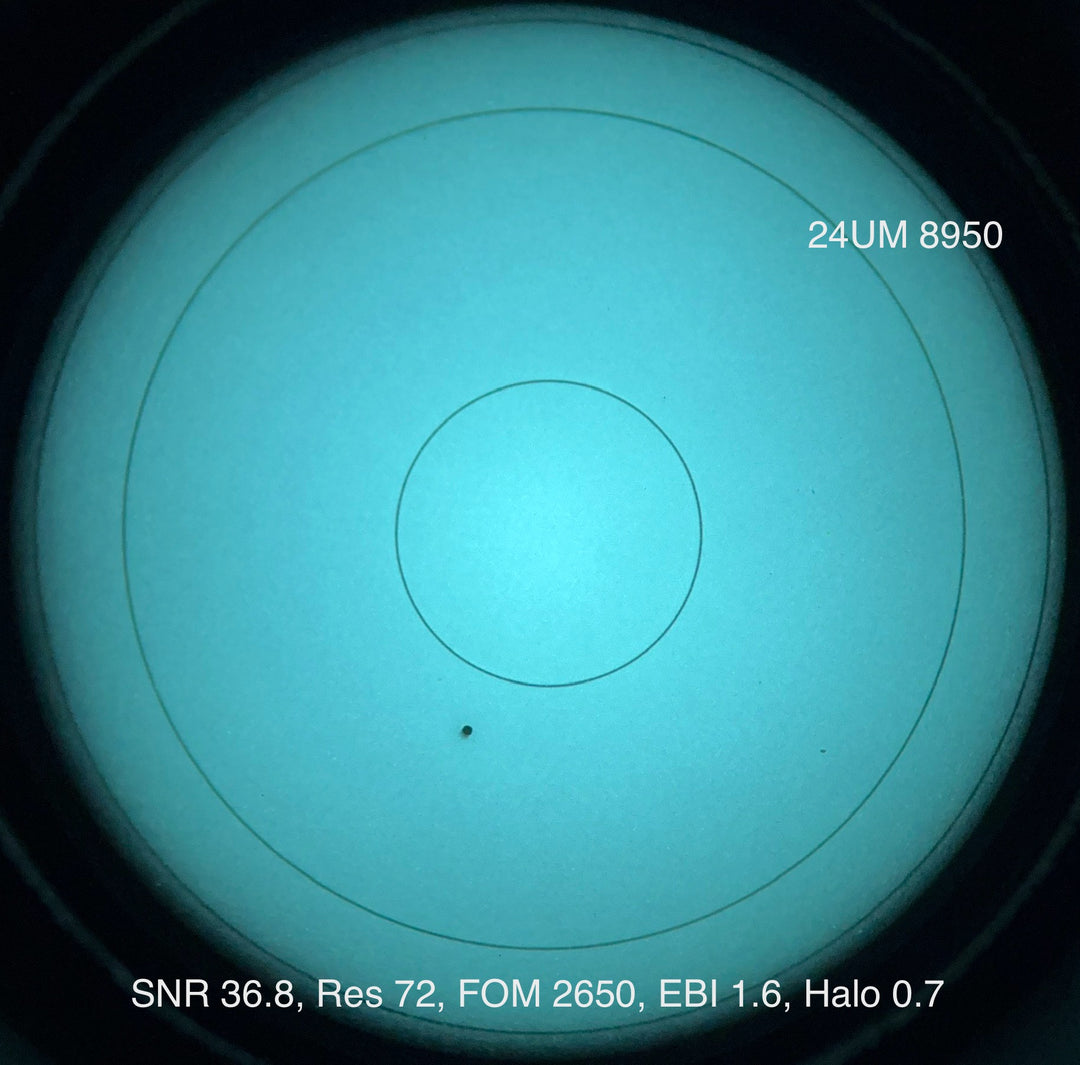

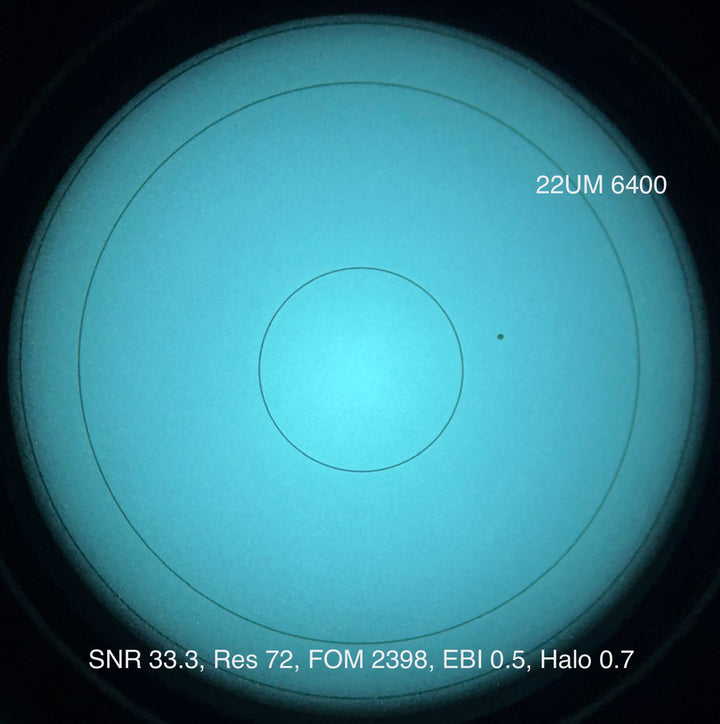

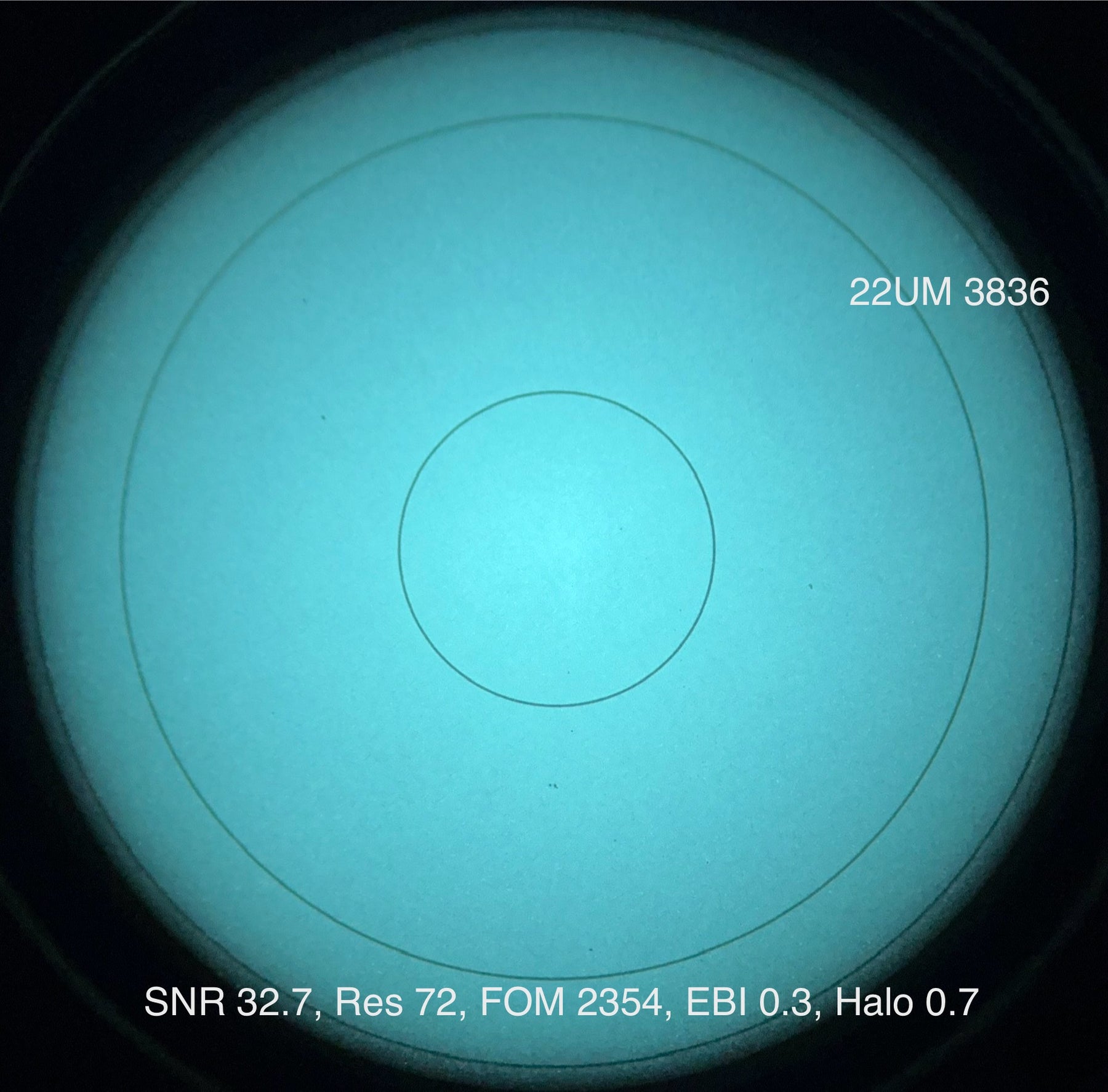

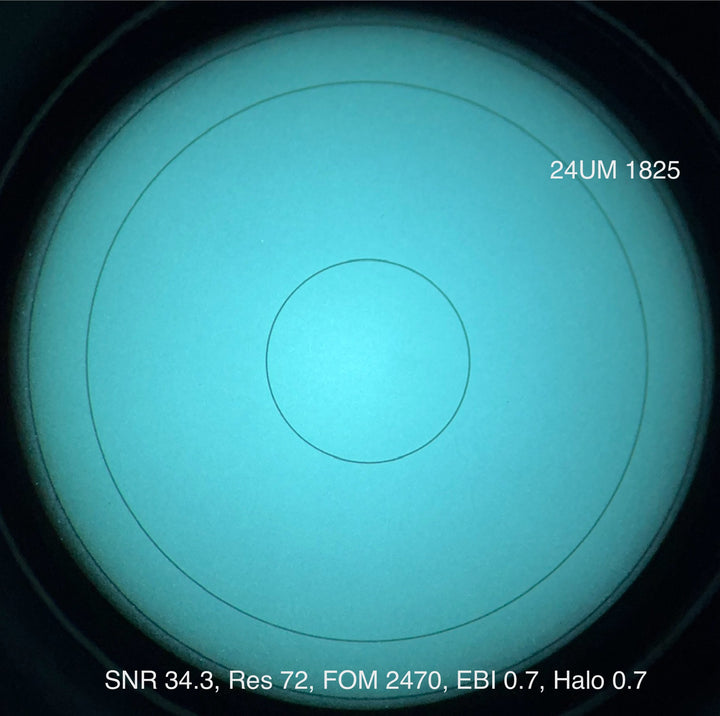

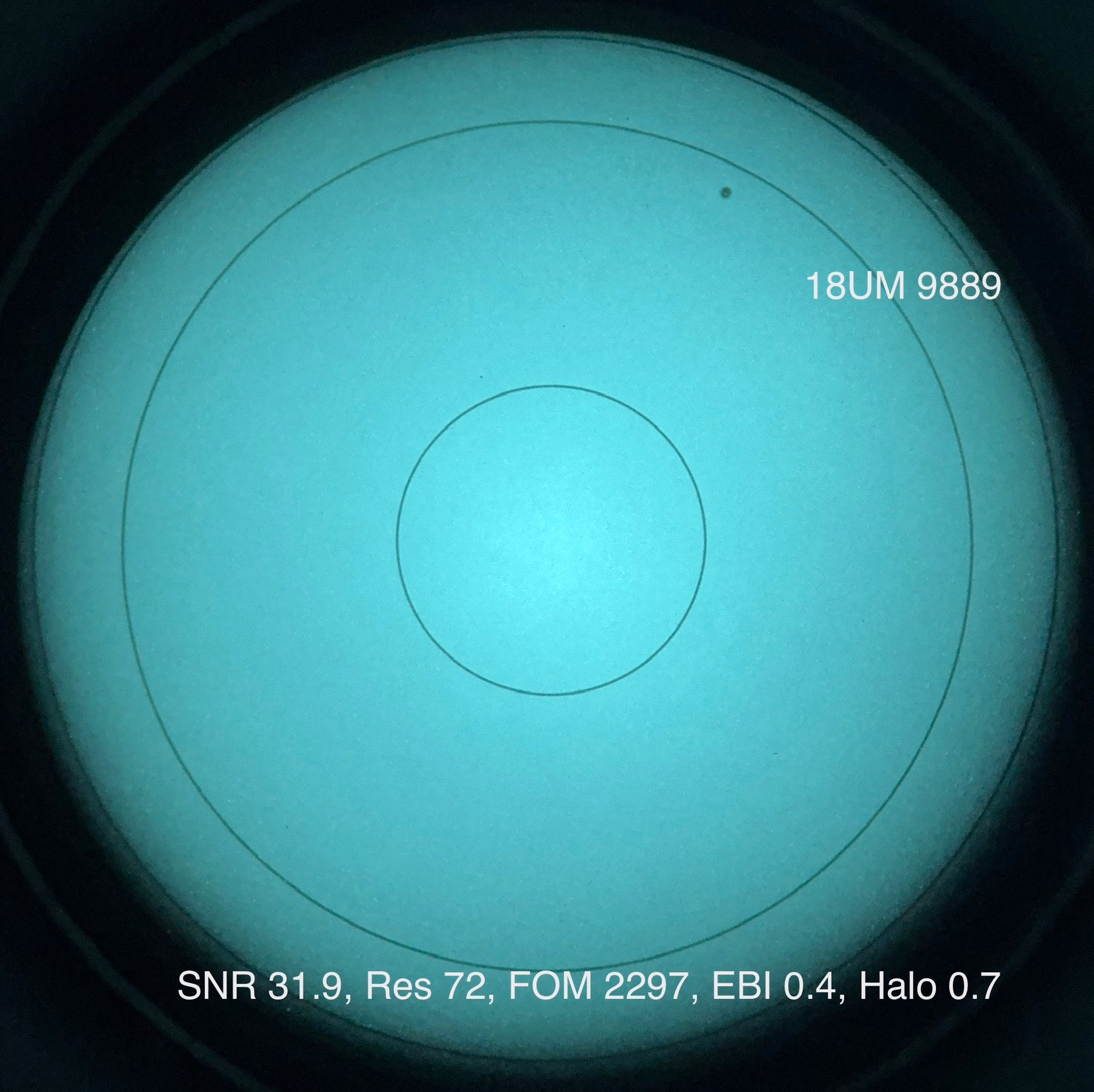

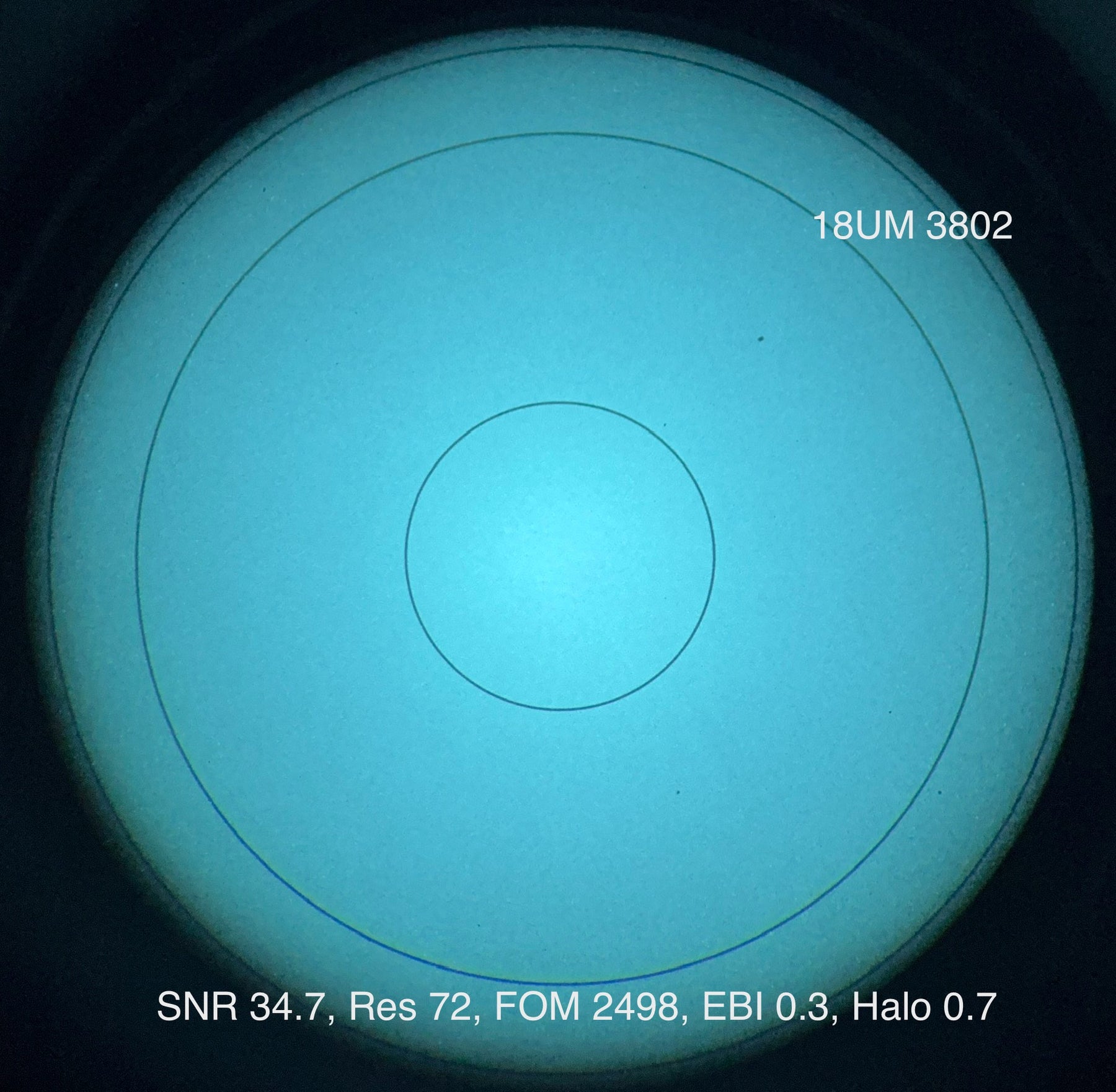

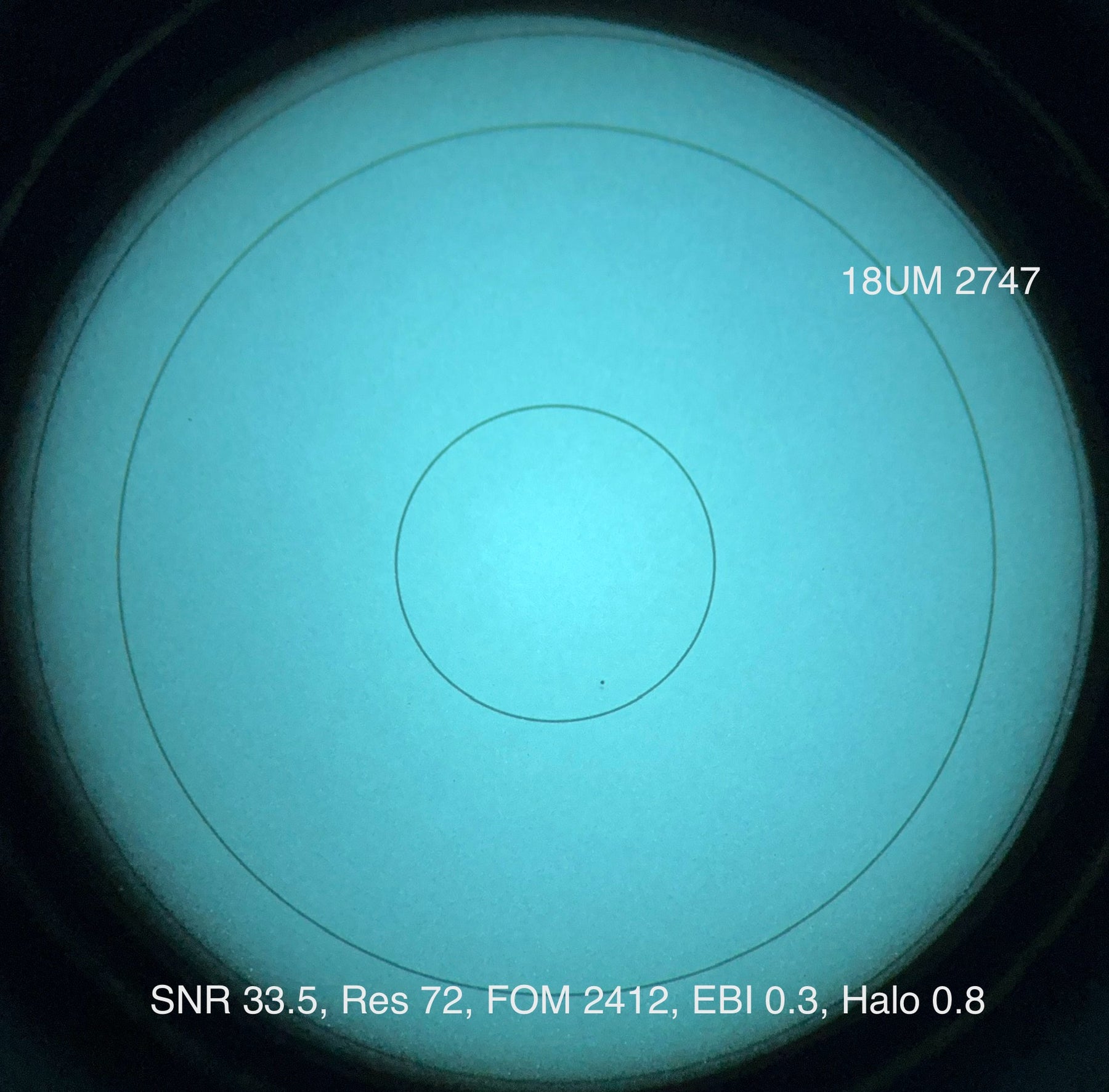

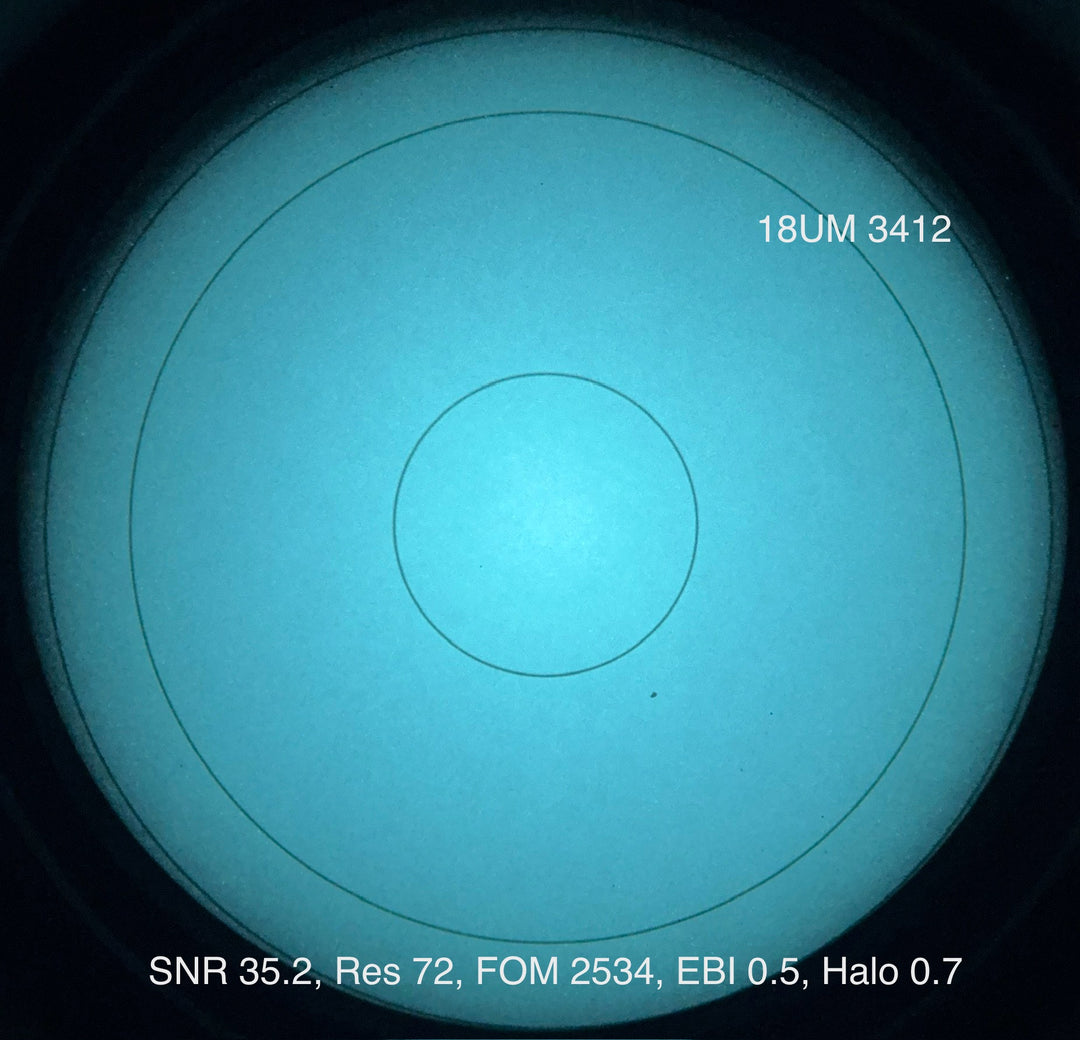

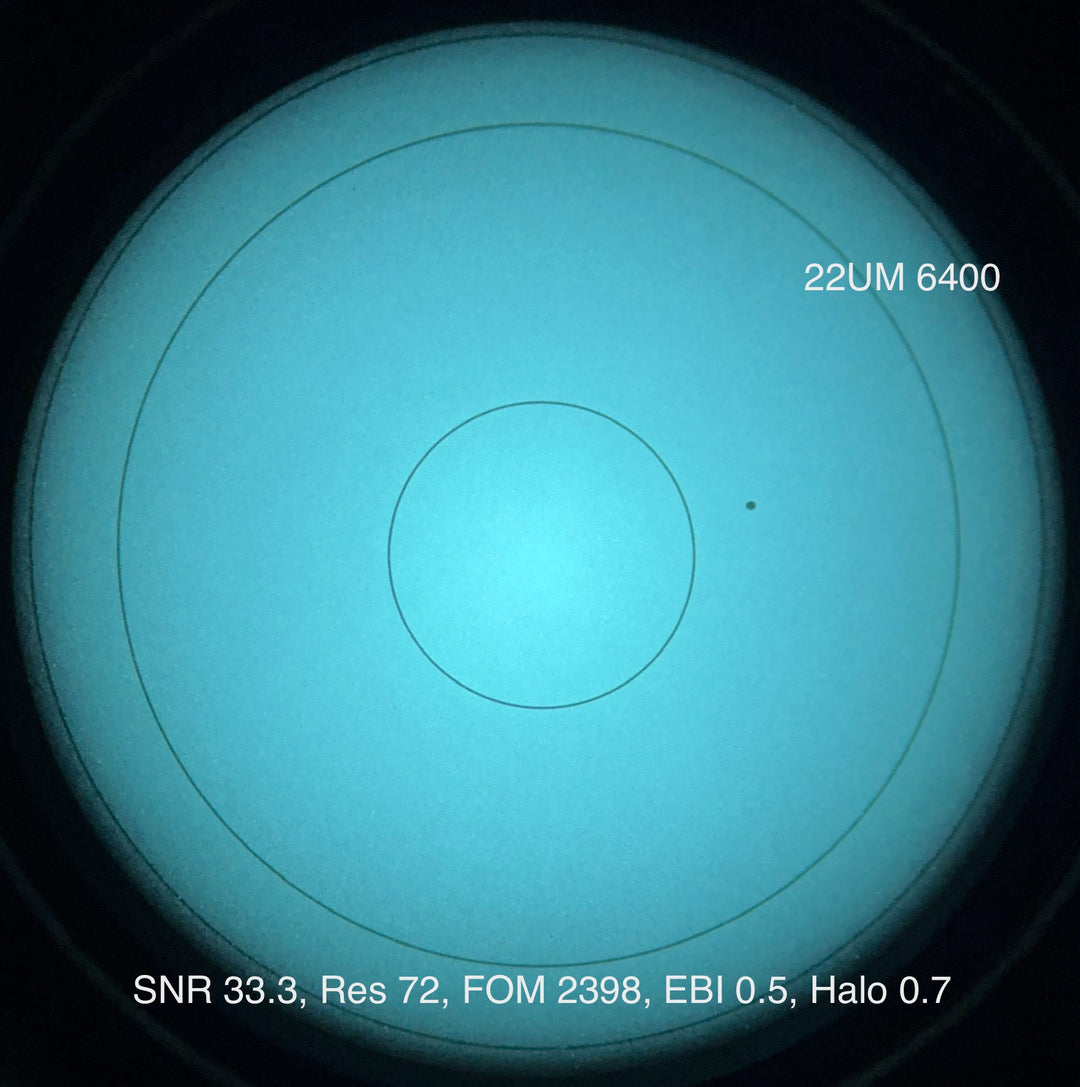

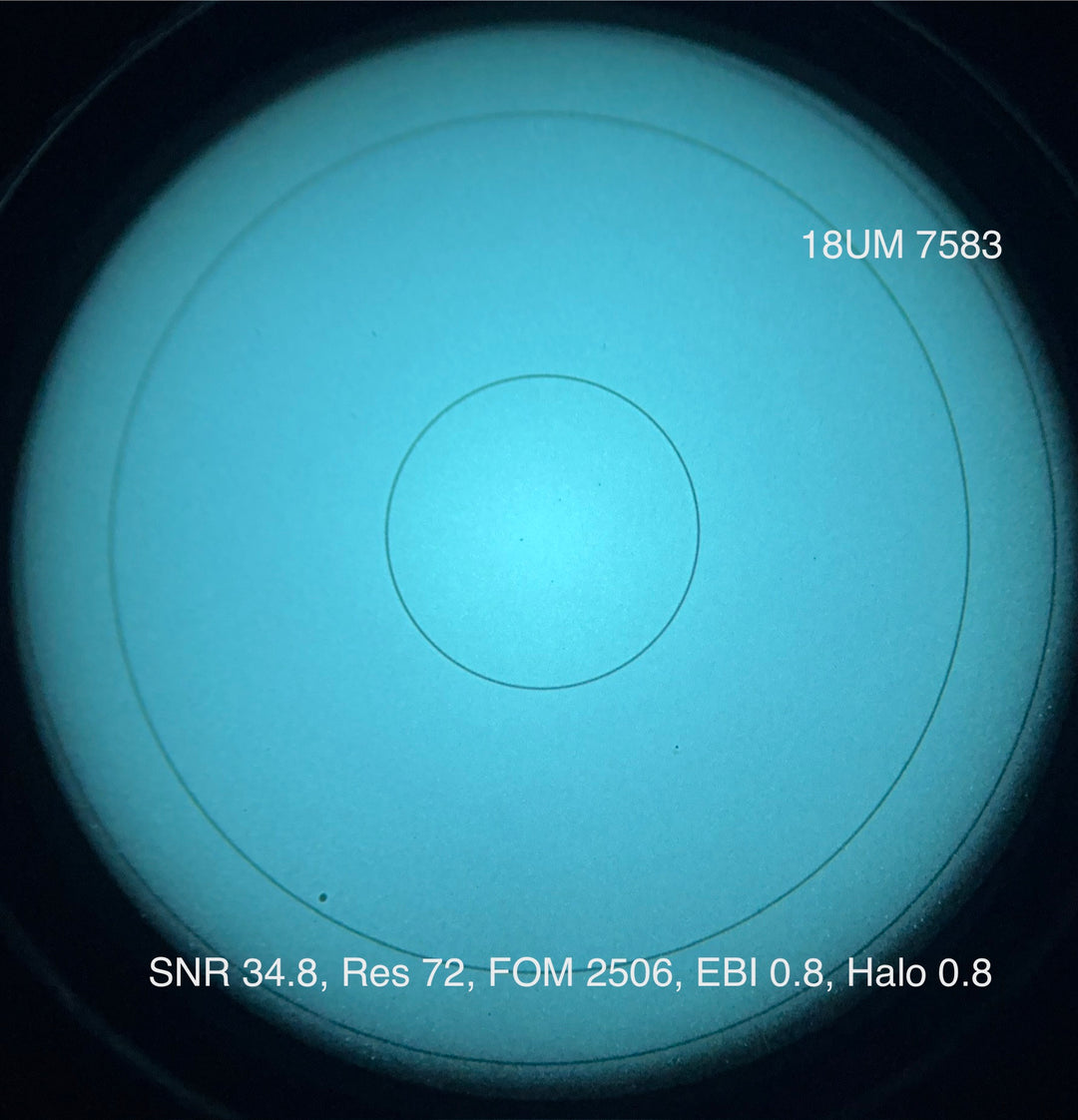

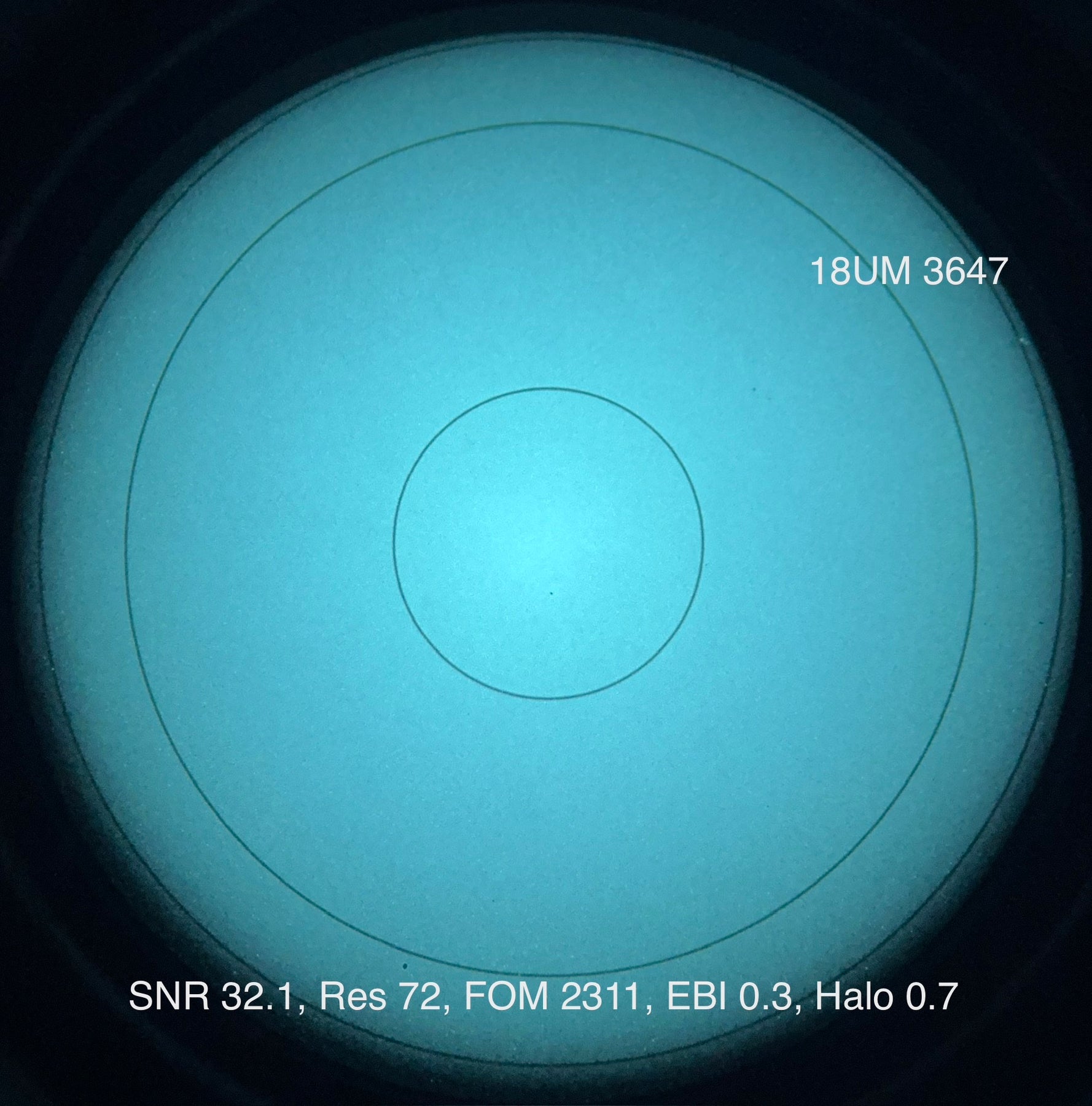

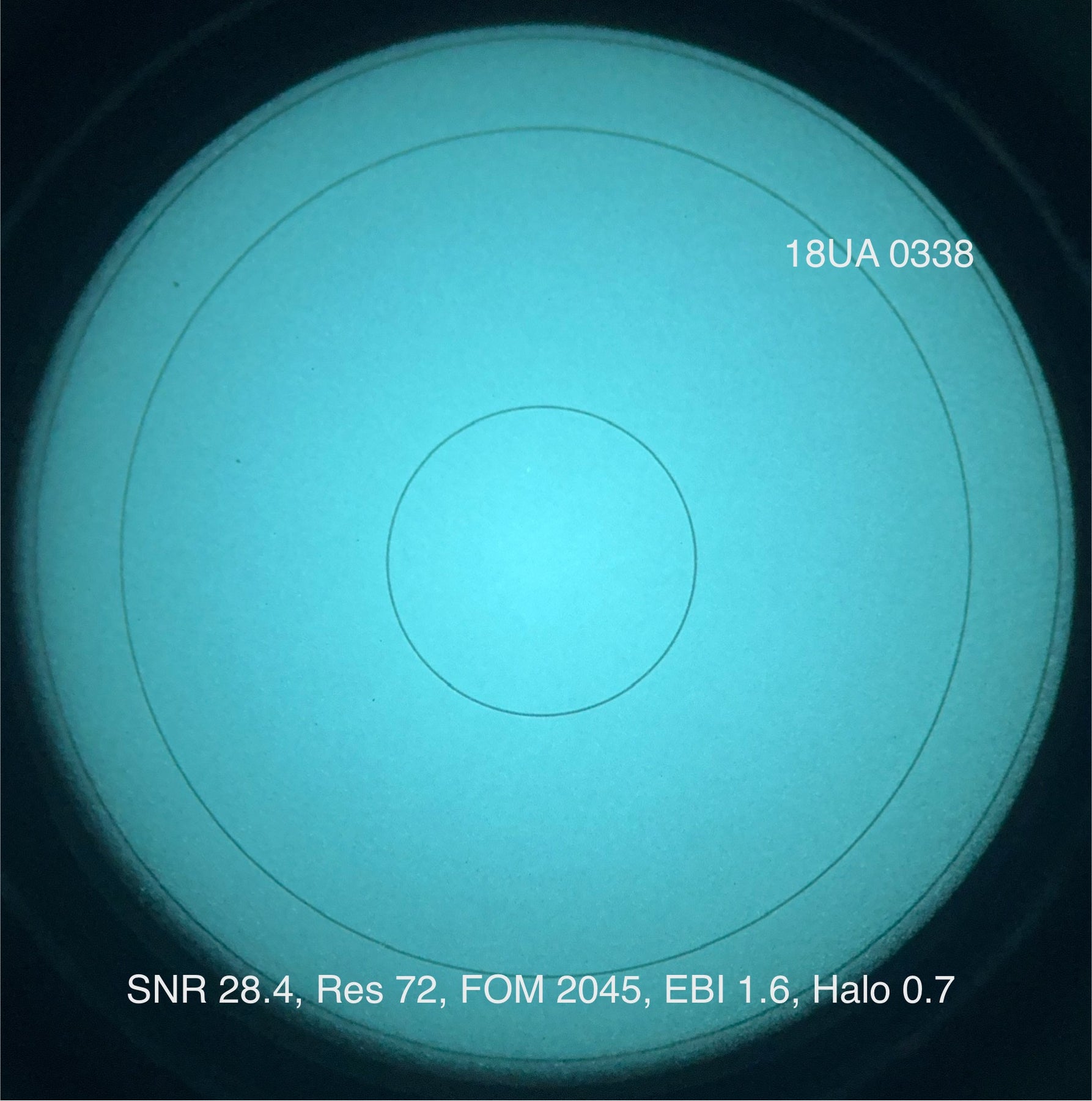

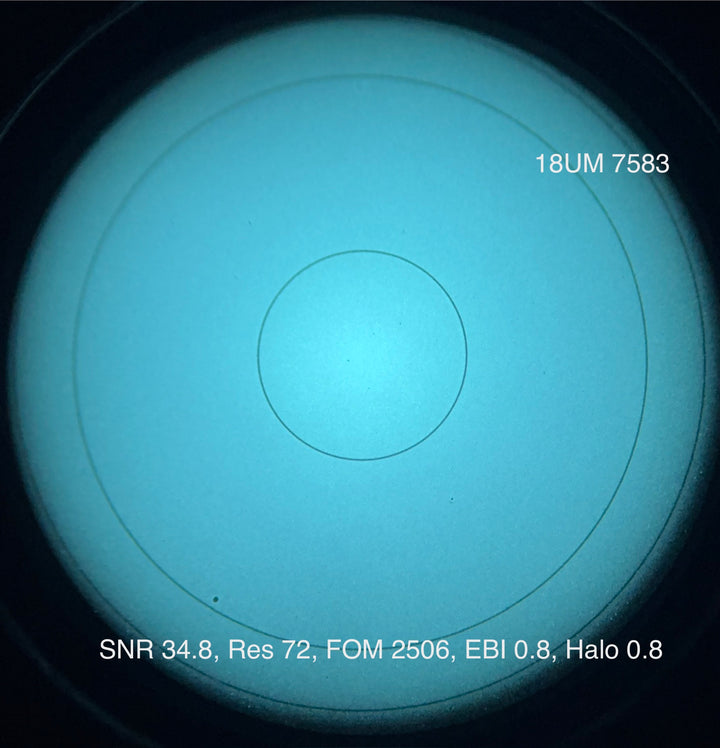

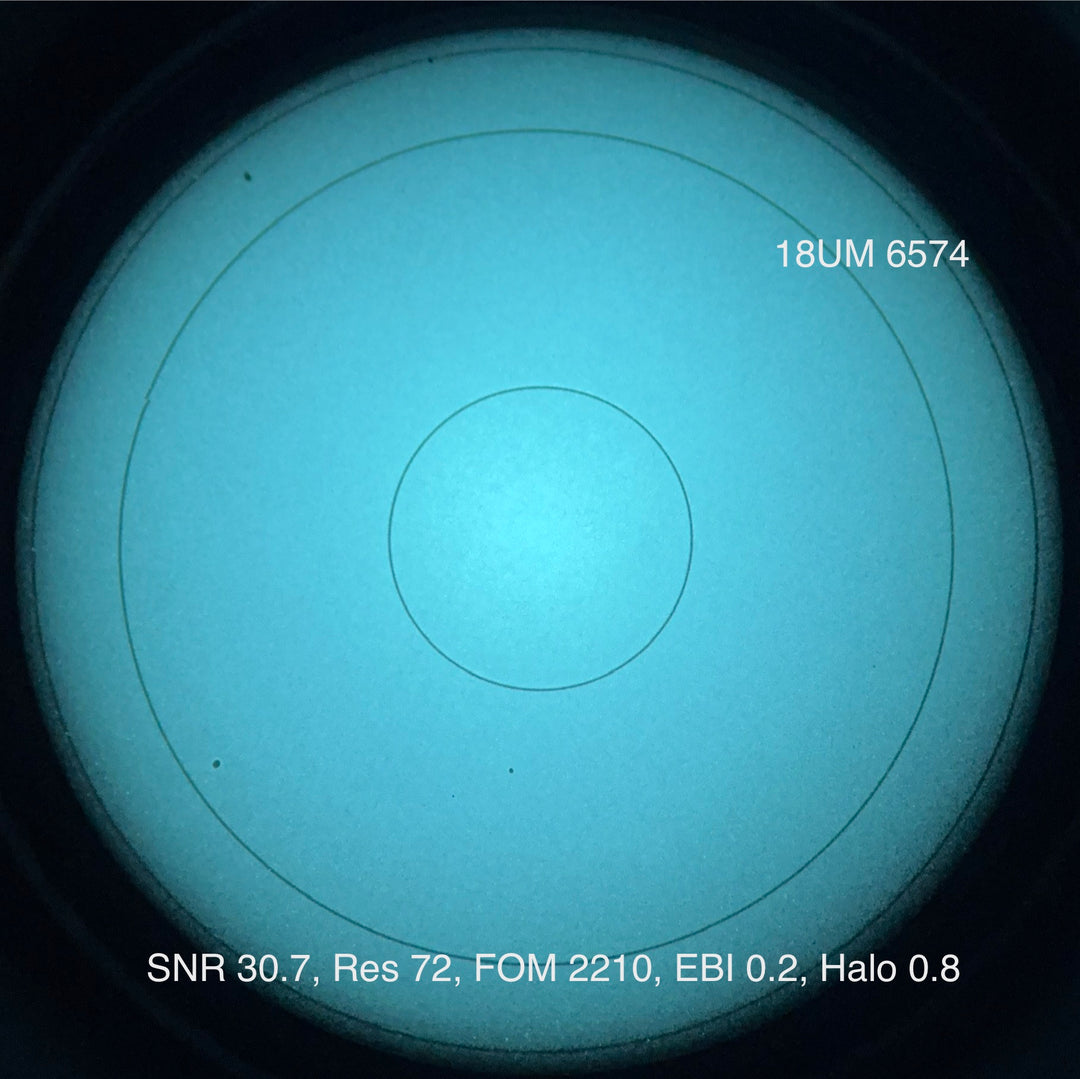

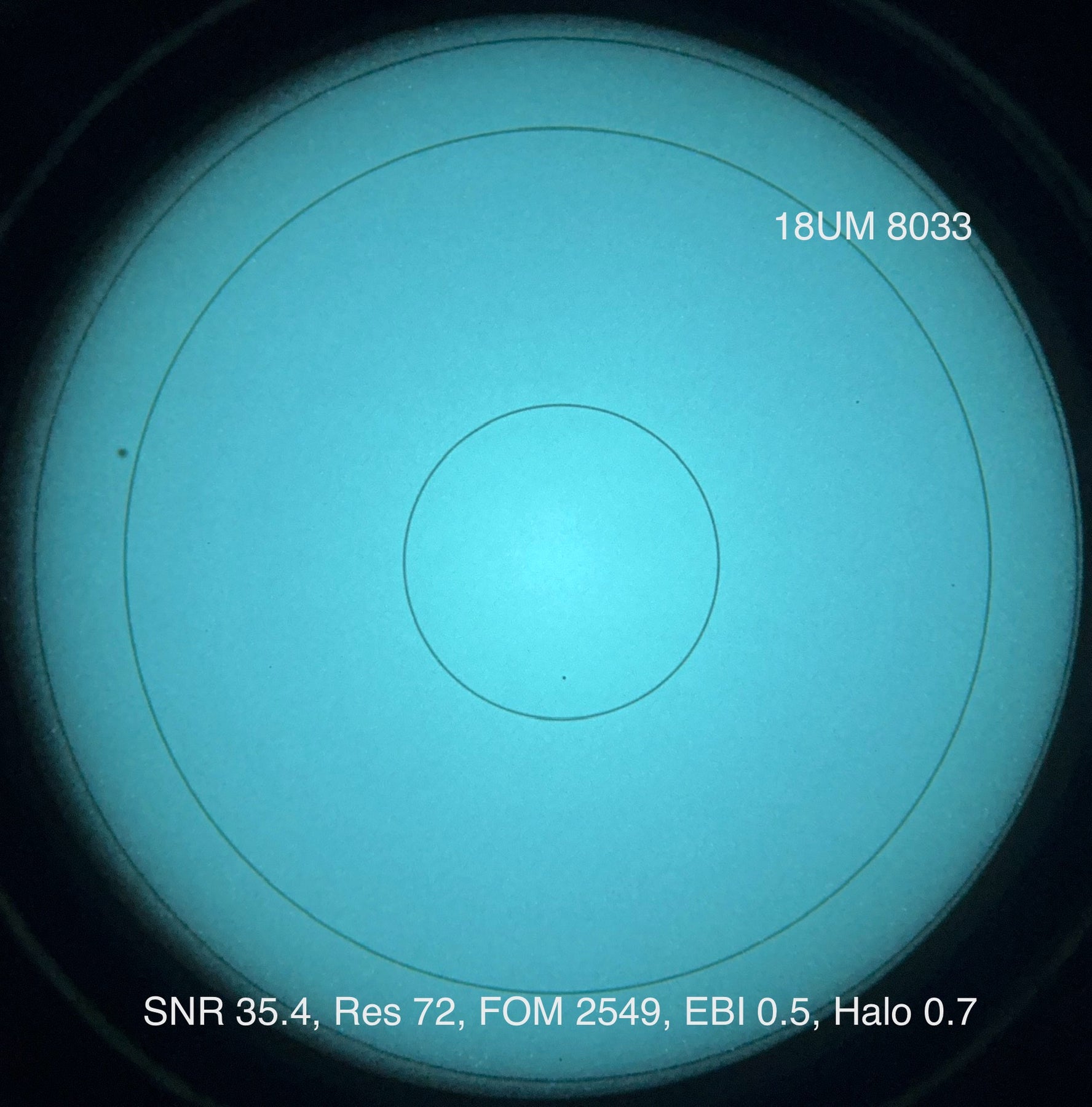

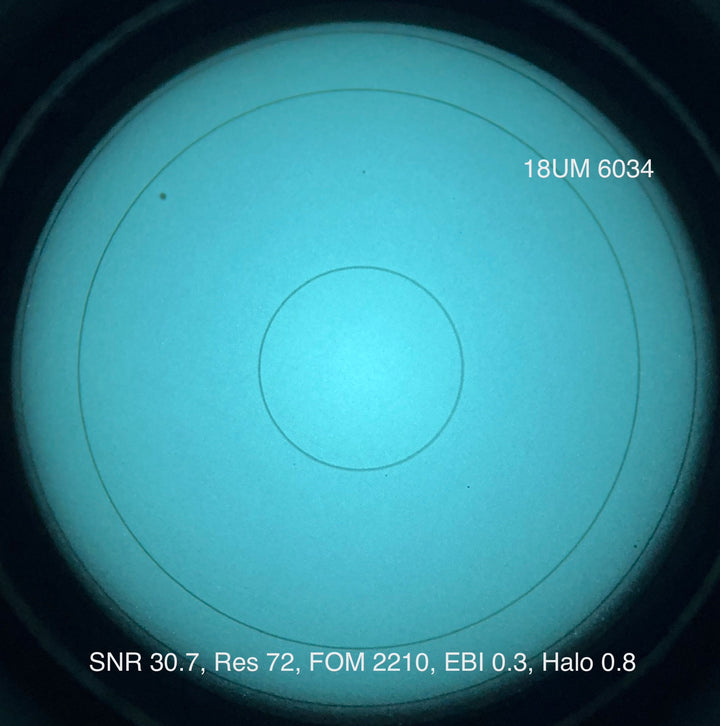

Provided images through the tubes are captured on a Hoffman Engineering 126A. The digital imaging process can cause slight color and brightness variations between images. White phosphor tubes appear white to the eye. Images may may not depict all cosmetic details in every lighting evironment. Every night vision device has some degree of peppering or small spots at or below .003" (the smallest countable size depicted on a data sheet).

Q: Why do some pictures look more blue vs. green? Is one better? Also, some appear to be brighter than others.

A: Color differences are primarily caused by taking digital images of tubes and are not reflective of tube performance. Tube pictures are provided to show spots and cosmetic blemishes.  White phosphor tubes will appear white to the eye - not blue or green, though there can be very slight variation among tubes.

Q: Why do some tubes contain dark spots?

A: Spots are caused by the manufacturing process of night vision intensifier tubes. Spots aren't an indication of performance and exist in nearly every tube (though some tubes may exhibit larger spots than others). Military Spot spec tubes permit countable spots (those larger than .003") in zone 2 and zone 3 (the rings outside of the bullseye on a dart board), whereas aviation spot spec tubes only permit countable spots in zone 3 (outer periphery of the tube, furthest from center).

 L3Harris | Minimum Specifications and Spots



Spots

L3Harris Tubes ending with UM or UA (ex. 18UM vs. 24UA) have differing tolerances for dark spots.

  • UM (military) tubes permit spots greater than .003" (diameter) in Zone 2 and 3. Spots greater than .003" are not permitted in Zone 1.
  • UA (aviation) tubes limit spots greater than .003" to Zone 3 only. This is L3's strictest spot spec.
  • Dark spots less than or equal to .003" don't meet the threshold as a countable spot and are commonly referred to as "peppering".

To reference the Zone regions, you can refer to the image above which shows a tube photographed on a Hoffman Engineering 126A test set.

Military Spot Spec:

Spot Size Zone 1 Zone 2 Zone 3
(Inches) Limit Limit Limit
>.012 0 0 0
>.009 0 0 0
>.006-.009 0 1 1
>.003-.006 0 2 2
Bright Spots 0 0 0
Dark spots </= .003” are acceptable

Despite adding up to 6 total (above), L3 tubes are limited to 4 spots max

Aviation Spot Spec:

Spot Size Zone 1 Zone 2 Zone 3
(Inches) Limit Limit Limit
>.012 0 0 0
>.009 0 0 0
>.006-.009 0 0 1
>.003-.006 0 0 2
Bright Spots 0 0 0
Dark spots </= .003” are acceptable



Performance

L3Harris unfilmed tubes are available with various minimum performance levels (18, 20, 22, 24).

The higher the performance series number (i.e. 20 vs. 18), the higher the minimum performance.

This performance series is then combined with a spot spec to identify the tube. For example, the 18 performance series, with unlimited FOM ("U"), and Military ("M") spot spec would be 18UM.

Tube Model Performance summary:

18 Series (UM or UA):
  • Center Resolution: 64 lp/mm minimum
  • FOM: 1540 minimum
  • Halo: 1.0 maximum
  • EBI: 2.5 maximum
20 Series (UM or UA):
  • Center Resolution: 64 lp/mm minimum
  • FOM: 1792 minimum
  • Halo: 1.0 maximum
  • EBI: 2.5 maximum
22 Series (UM or UA):
  • Center Resolution: 64 lp/mm minimum
  • FOM: 1920 minimum
  • Halo: 1.0 maximum
  • EBI: 2.5 maximum
24 Series (UM or UA):
  • Center Resolution: 64 lp/mm minimum
  • FOM: 2160 minimum
  • Halo: 1.0 maximum
  • EBI: 2.5 maximum
1217 Tubes (Custom 24 UA,  36 SNR Min.) :
  • SNR: 36 minimum
  • Center Resolution: 64 lp/mm minimum
  • FOM: 2304 minimum (implied)
  • Halo: 1.0 maximum
  • EBI: 2.5 maximum
  • Aviation Spot Spec (Spots limited to Zone 3 only)

Other:

1610 Tubes / 2376+ FOM models of PVS-31A, BNVD 1531:
  • SNR: 33 minimum
  • FOM: 2376 minimum
  • Center Resolution: 72 lp/mm minimum
  • Halo: 0.85 maximum
  • EBI: 2.5 maximum
  • Military Spot Spec (Spots permitted in Zone 2 and Zone 3)

Please be advised: night vision, thermal, and certain accessories you purchase from Apollo Gear LLC are controlled technologies.

As such, by purchasing products from Apollo Gear LLC, you acknowledge and agree to the following statements:

  • These products and technologies are subject to one or more of the export control laws and regulations of the U.S. Government and may fall under the control jurisdiction of either the Department of State’s International Traffic in Arms Regulations (ITAR) or the Department of Commerce’s Export Administration Regulations (EAR).
  • It is unlawful to export, or attempt to export or otherwise transfer or sell any hardware or technical data or furnish any service to any foreign person, whether abroad or in the United States (U.S.), for which a license or written approval of the U.S. Government is required, without first obtaining the required license or written approval from the department of the U.S. Government having jurisdiction.
  • I understand that, in the ITAR (§ 120.16), a foreign person means any natural person who is not a lawful permanent resident as defined by 8 U.S.C. 1101(a)(20) or who is not a protected individual as defined by 8 U.S.C. 1324b(a)(3). It also means any foreign corporation, business association, partnership, trust, society or any other entity or group that is not incorporated or organized to do business in the U.S., as well as international organizations, foreign governments and any agency or subdivision of foreign governments (e.g., diplomatic missions).
  • I understand that I am responsible for compliance with any and all U.S. Government export controls and regulations and that, if I violate them, it could result in severe criminal and civil penalties (including substantial fines, imprisonment, seizure of controlled products and technical data, among other penalties, for me and/or any company I represent).
  • I understand I am purchasing this equipment for use in the United States only.
  • I understand and agree that these items will not be exported, provided to foreign persons in the U.S. (including Foreign Embassies in the U.S.) or sold domestically for export by a third party (including U.S. Government agencies).
  • I understand if these items are sold, it is my responsibility to advise the purchaser of their duty to comply with U.S. export control regulations or face the possibility of severe criminal and civil fines, including imprisonment.
  • I understand it is my obligation to obtain and retain a record of the sale if these items are sold.
  • I will inform Apollo Gear LLC if these products are lost, stolen or destroyed, and provide the date of the incident as well as the associated serial number of the item so that Apollo Gear LLC can maintain information for its records and may provide it to the proper regulating authority.



By purchasing any product from Apollo Gear LLC, you agree that you will abide by our Terms of Service.

Units ship within 3-5 business days.


Full kit contains PVS-14 with L3Harris 20UM unfilmed tube, data sheet from L3Harris, objective lens cover, eyepiece cover, sacrificial window, demist shield, cleaning wipes, AA battery, Apollo stickers / decals, and a soft-sided carry case.


  • L3Harris Unfilmed ("Filmless")
  • Gen 3, White Phosphor, Autogated.
  • Unlimited FOM, Military Spot Spec.
  • Military spot spec L3Harris' permits spots larger than .003" in zone 2 and zone 3. Please note that all night vision contains small spots, aka peppering, to some degree under the countable spot threshold.
    • See "Spec Key" and "Helpful Info" dropdowns above for more info.



SN #: 170331721
SNR: 31.4
RES: 72
FOM: 2261
HALO: 0.7
EBI: 0.2

SN #: 170269740
SNR: 35.5
RES: 72
FOM: 2556
HALO: 0.6
EBI: 0.6

Versatility

The PVS-14 is generally considered to be the most versatile night vision device available. They can be worn helmet mounted, hand-held, mounted to a telescope, camera, or other magnified optic for astronomy or surveillance. Their small size means they are easy to travel with and carry. They are small enough to fit in a GP pouch on a plate carrier without being obstructive.

Adjustable Gain
PVS-14s have variable gain adjustment and control.

Gain control gives the user the ability to increase or decrease the tube brightness.

Under extremely dark conditions, variable gain (also referred to as manual gain) allows the user to adjust the gain upward, giving a brighter image.

Under higher light conditions, the user can decrease the gain for a cleaner image or to prevent the washout of fine details in high light.

Additional features of the PVS-14 include an onboard IR illuminator and a red LED indicator light (light pipe) internal to the device (behind the tube) which signals IR is active or battery is low.

The PVS-14 allows the user to retain their night adapted vision in one eye while viewing their illuminated surroundings through eyepiece of the PVS-14. On the other hand, binocular night vision gives the user better depth perception, and if it includes articulation, the ability to also use a monocular similar to a PVS-14 (by rotating one pod out of the way).



Tech Specs

Finish Polymer body (glass/carbon filled)
Capability

Flip-Up On-Off
Built-in IR LED with “IR-on” indicator in FOV
Low battery indicator in FOV
Corrosion Resistance against salt water

Gain Control Variable (manually adjustable). Requires tube type mx11769 or mx10160 with EGAC added.
Magnification 1x
Lens System F/1.2
FOV 40°
Range of Focus 0.25 m to ∞
Diopter Adjustment +2 to -6
Infrared Illuminator Yes
Power Supply AA
Battery Life ~40 Hours (Alkaline), up to ~70 Hours (Lithium)
Dimensions 4.5"L X 2.5"W X 2.75"H
Weight 307g (10.8oz), depending on optics and tubes
Standards Complies with MIL-PRF-49324(CR), MIL-PRF-49427(CR) and MIL-STD-810H (supersedes G).
