DTNVS | L3Harris Unfilmed White Phosphor - 24UAH "Super-Gain"

DTNVS | L3Harris Unfilmed White Phosphor - 24UAH "Super-Gain"

Regular price $12,899.00 Sale price$11,795.00 Save $1,104.00
/
Shipping calculated at checkout.

SPEC KEY:

Hand-Select Night Vision includes actual specs of the tube(s) included in your night vision device as listed on the tube manufacturer's data sheet. The data sheet serves as a certificate of conformance to demonstrate that tubes meet or exceed their quality and performance standards.

For a breakdown of L3Harris' various tube options and associated minimum performance, please see our guide to Minimum Specifications and Spots. Guides discussing specs are available under the "Resources" tab

FOM = Figure of Merit

SNR = Signal to Noise (Numeric)

RES (or CR) = Center Resolution (line pairs / mm)

HALO = Halo (mm)

EBI = Equivalent Background Illumination

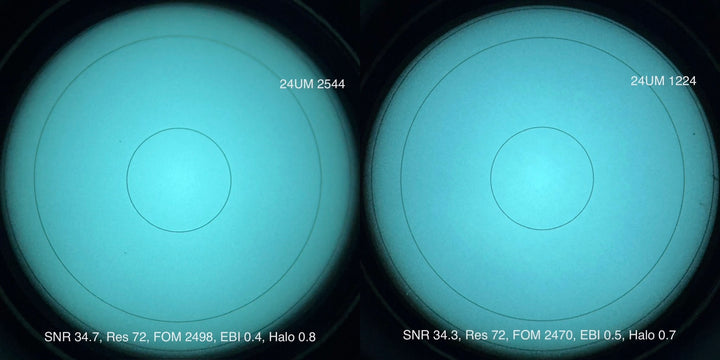

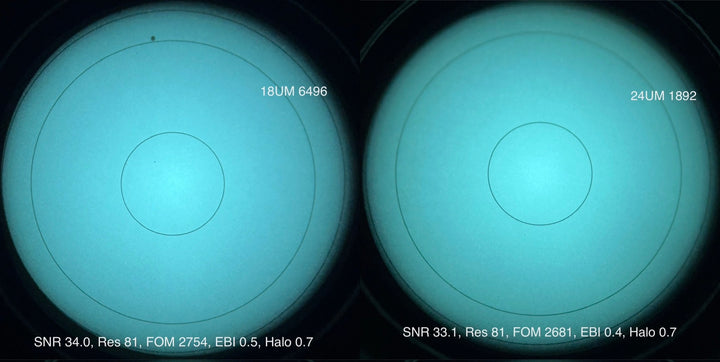

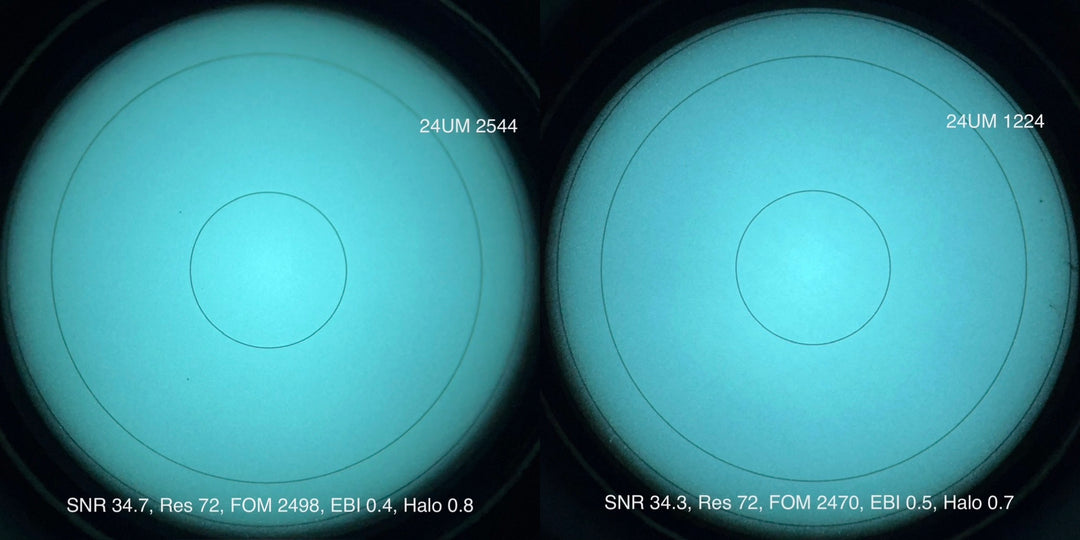

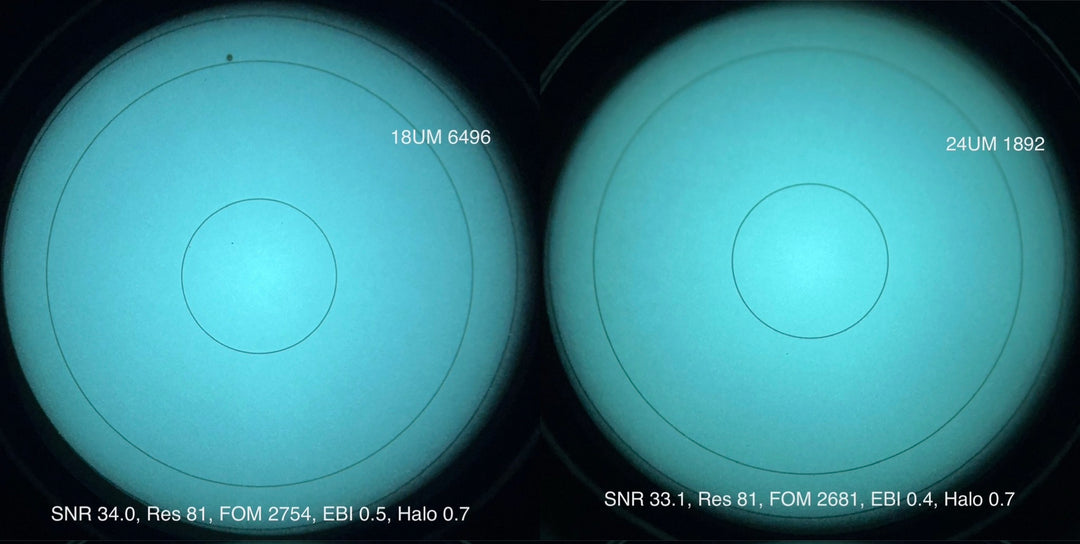

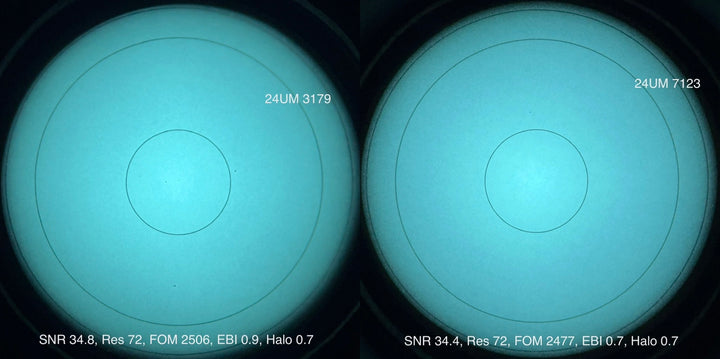

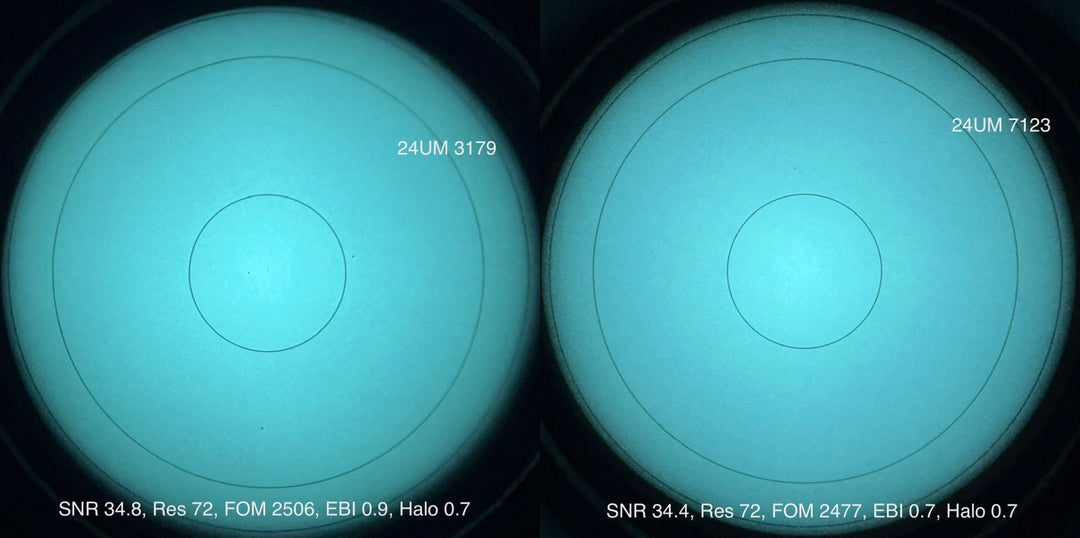

Provided images through the tubes are captured on a Hoffman Engineering 126A. The digital imaging process can cause slight color and brightness variations between images. White phosphor tubes appear white to the eye. Images may may not depict all cosmetic details in every lighting evironment. Every night vision device has some degree of peppering or small spots at or below .003" (the smallest countable size depicted on a data sheet).

Q: Why do some pictures look more blue vs. green? Is one better? Also, some appear to be brighter than others.

A: Color differences are primarily caused by taking digital images of tubes and are not reflective of tube performance. Tube pictures are provided to show spots and cosmetic blemishes.  White phosphor tubes will appear white to the eye - not blue or green, though there can be very slight variation among tubes.

Q: Why do some tubes contain dark spots?

A: Spots are caused by the manufacturing process of night vision intensifier tubes. Spots aren't an indication of performance and exist in nearly every tube (though some tubes may exhibit larger spots than others). Military Spot spec tubes permit countable spots (those larger than .003") in zone 2 and zone 3 (the rings outside of the bullseye on a dart board), whereas aviation spot spec tubes only permit countable spots in zone 3 (outer periphery of the tube, furthest from center).

 L3Harris | Minimum Specifications and Spots



Spots

L3Harris Tubes ending with UM or UA (ex. 18UM vs. 24UA) have differing tolerances for dark spots.

  • UM (military) tubes permit spots greater than .003" (diameter) in Zone 2 and 3. Spots greater than .003" are not permitted in Zone 1.
  • UA (aviation) tubes limit spots greater than .003" to Zone 3 only. This is L3's strictest spot spec.
  • Dark spots less than or equal to .003" don't meet the threshold as a countable spot and are commonly referred to as "peppering".

To reference the Zone regions, you can refer to the image above which shows a tube photographed on a Hoffman Engineering 126A test set.

Military Spot Spec:

Spot Size Zone 1 Zone 2 Zone 3
(Inches) Limit Limit Limit
>.012 0 0 0
>.009 0 0 0
>.006-.009 0 1 1
>.003-.006 0 2 2
Bright Spots 0 0 0
Dark spots </= .003” are acceptable

Despite adding up to 6 total (above), L3 tubes are limited to 4 spots max

Aviation Spot Spec:

Spot Size Zone 1 Zone 2 Zone 3
(Inches) Limit Limit Limit
>.012 0 0 0
>.009 0 0 0
>.006-.009 0 0 1
>.003-.006 0 0 2
Bright Spots 0 0 0
Dark spots </= .003” are acceptable



Performance

L3Harris unfilmed tubes are available with various minimum performance levels (18, 20, 22, 24).

The higher the performance series number (i.e. 20 vs. 18), the higher the minimum performance.

This performance series is then combined with a spot spec to identify the tube. For example, the 18 performance series, with unlimited FOM ("U"), and Military ("M") spot spec would be 18UM.

Tube Model Performance summary:

18 Series (UM or UA):
  • Center Resolution: 64 lp/mm minimum
  • FOM: 1540 minimum
  • Halo: 1.0 maximum
  • EBI: 2.5 maximum
20 Series (UM or UA):
  • Center Resolution: 64 lp/mm minimum
  • FOM: 1792 minimum
  • Halo: 1.0 maximum
  • EBI: 2.5 maximum
22 Series (UM or UA):
  • Center Resolution: 64 lp/mm minimum
  • FOM: 1920 minimum
  • Halo: 1.0 maximum
  • EBI: 2.5 maximum
24 Series (UM or UA):
  • Center Resolution: 64 lp/mm minimum
  • FOM: 2160 minimum
  • Halo: 1.0 maximum
  • EBI: 2.5 maximum
1217 Tubes (Custom 24 UA,  36 SNR Min.) :
  • SNR: 36 minimum
  • Center Resolution: 64 lp/mm minimum
  • FOM: 2304 minimum (implied)
  • Halo: 1.0 maximum
  • EBI: 2.5 maximum
  • Aviation Spot Spec (Spots limited to Zone 3 only)

Other:

1610 Tubes / 2376+ FOM models of PVS-31A, BNVD 1531:
  • SNR: 33 minimum
  • FOM: 2376 minimum
  • Center Resolution: 72 lp/mm minimum
  • Halo: 0.85 maximum
  • EBI: 2.5 maximum
  • Military Spot Spec (Spots permitted in Zone 2 and Zone 3)

Please be advised: night vision, thermal, and certain accessories you purchase from Apollo Gear LLC are controlled technologies.

As such, by purchasing products from Apollo Gear LLC, you acknowledge and agree to the following statements:

  • These products and technologies are subject to one or more of the export control laws and regulations of the U.S. Government and may fall under the control jurisdiction of either the Department of State’s International Traffic in Arms Regulations (ITAR) or the Department of Commerce’s Export Administration Regulations (EAR).
  • It is unlawful to export, or attempt to export or otherwise transfer or sell any hardware or technical data or furnish any service to any foreign person, whether abroad or in the United States (U.S.), for which a license or written approval of the U.S. Government is required, without first obtaining the required license or written approval from the department of the U.S. Government having jurisdiction.
  • I understand that, in the ITAR (§ 120.16), a foreign person means any natural person who is not a lawful permanent resident as defined by 8 U.S.C. 1101(a)(20) or who is not a protected individual as defined by 8 U.S.C. 1324b(a)(3). It also means any foreign corporation, business association, partnership, trust, society or any other entity or group that is not incorporated or organized to do business in the U.S., as well as international organizations, foreign governments and any agency or subdivision of foreign governments (e.g., diplomatic missions).
  • I understand that I am responsible for compliance with any and all U.S. Government export controls and regulations and that, if I violate them, it could result in severe criminal and civil penalties (including substantial fines, imprisonment, seizure of controlled products and technical data, among other penalties, for me and/or any company I represent).
  • I understand I am purchasing this equipment for use in the United States only.
  • I understand and agree that these items will not be exported, provided to foreign persons in the U.S. (including Foreign Embassies in the U.S.) or sold domestically for export by a third party (including U.S. Government agencies).
  • I understand if these items are sold, it is my responsibility to advise the purchaser of their duty to comply with U.S. export control regulations or face the possibility of severe criminal and civil fines, including imprisonment.
  • I understand it is my obligation to obtain and retain a record of the sale if these items are sold.
  • I will inform Apollo Gear LLC if these products are lost, stolen or destroyed, and provide the date of the incident as well as the associated serial number of the item so that Apollo Gear LLC can maintain information for its records and may provide it to the proper regulating authority.



By purchasing any product from Apollo Gear LLC, you agree that you will abide by our Terms of Service.

These units carry a short lead time of less than 1 week. Hand selection is available for intensifier tubes on request.

Full kit contains DTNVS with mil-spec lenses, L3Harris data sheets, Apollo custom hard-sided case, objective lens covers, eyepiece covers, decals and stickers, and a Surefire CR123a battery.

The following Gen 3 white phosphor, unfilmed mil-spec tubes from L3Harris are Model 24UAH.

Unlimited FOM, Aviation spot spec, "Super-Gain".

Aviation spot spec is L3Harris' strictest and only permits spots larger than .003" in zone 3 only (please note that all night vision may contain small spots to some degree under the countable spot threshold in all zones)

The latest technology from L3Harris, providing 100,000 fL/fc minimum Luminance Gain for unparalleled light amplification.

Product Details :

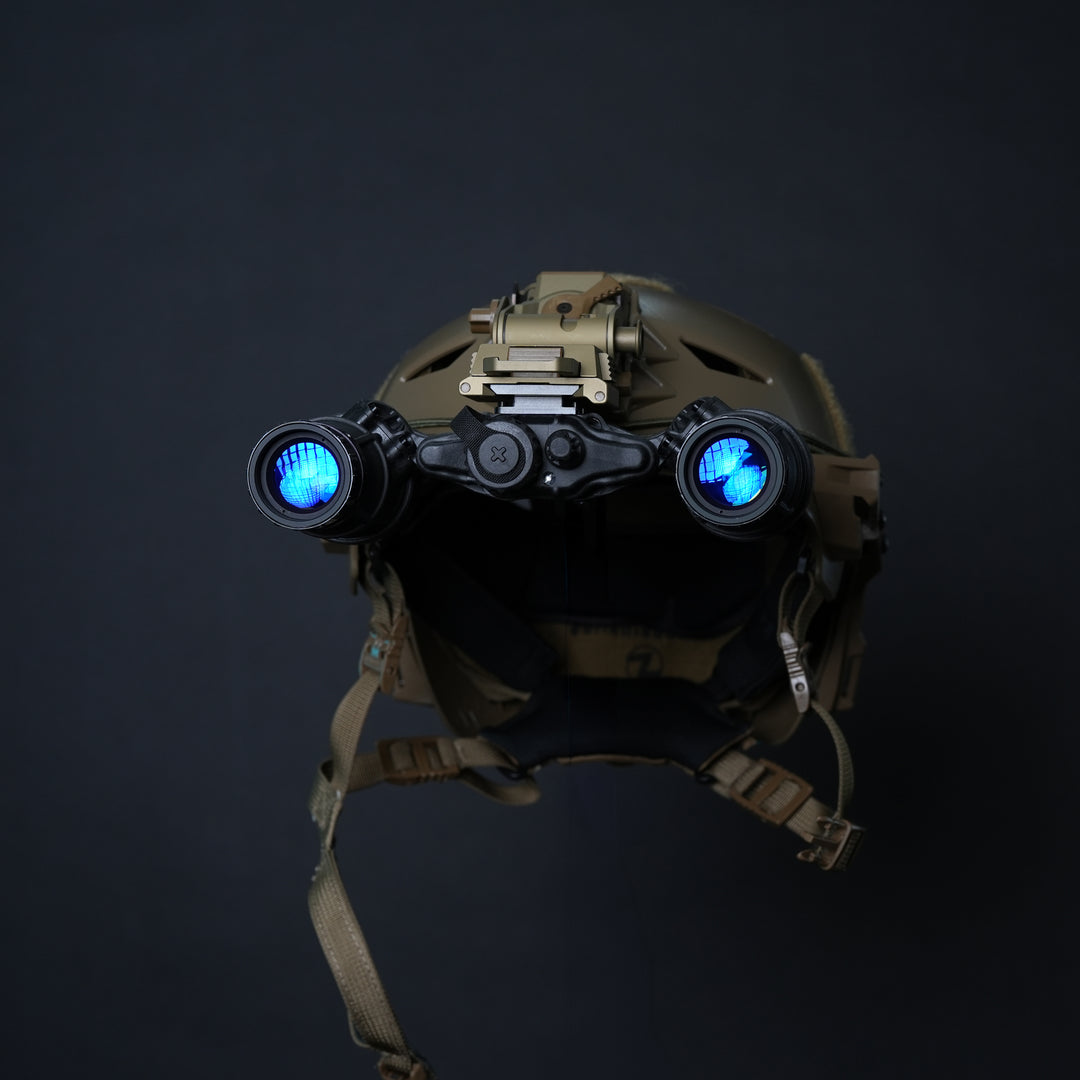

Auto-shutoff flexibility: The DTNVS has a traditional on/off knob but also includes an auto-shutoff feature which engages when it senses that its been flipped up on a helmet, as well as independent pod auto-shutoff when each pod is rotated up.

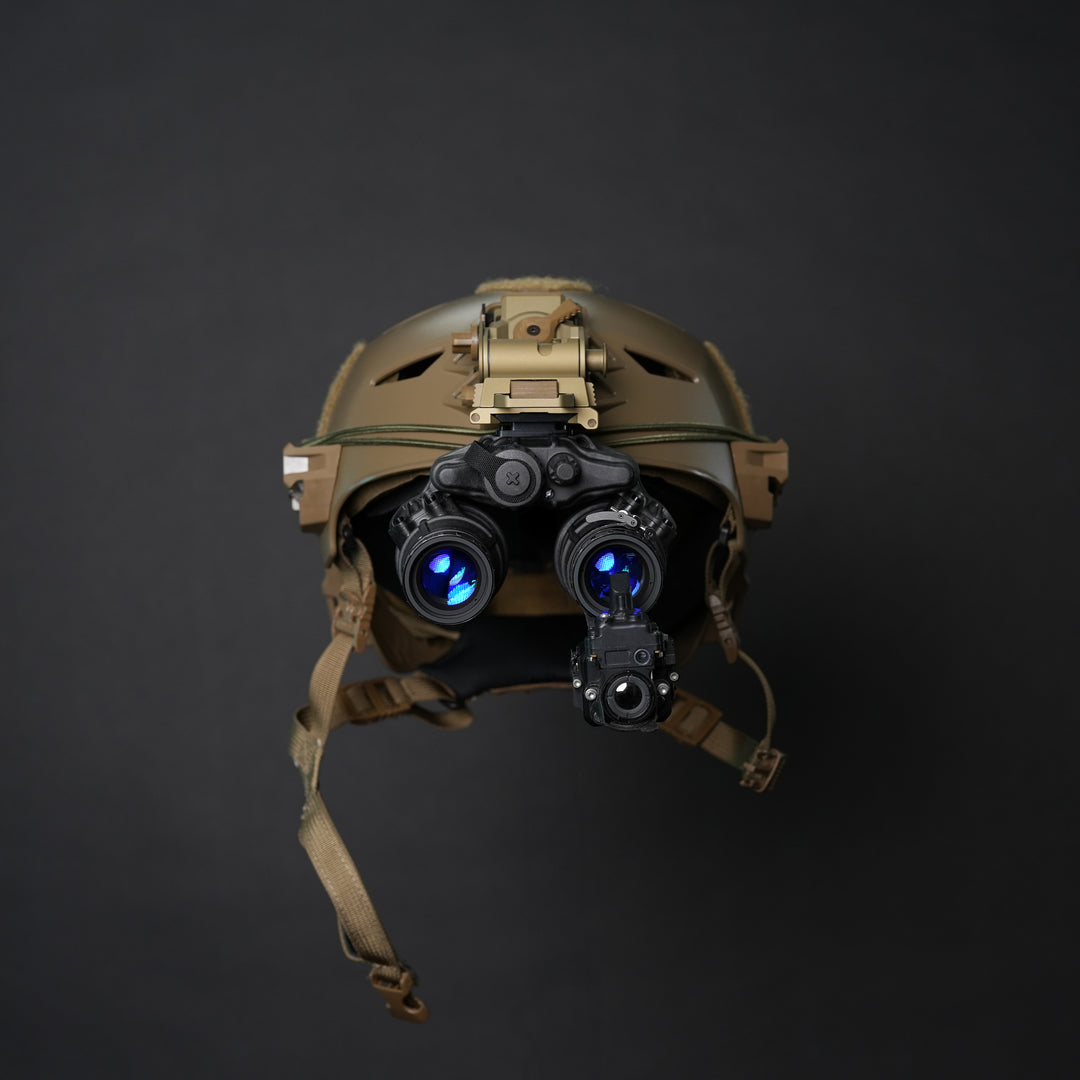

Independent pod shutoff allows the user to rotate a single pod out of their line of sight (above their eye) which can be helpful when looking through a thermal scope. It may also be helpful if the user wants to use a single monocular (which also saves power). Additionally, by rotating both pods out of the way (as opposed to flipping the device onto the helmet), the user can quickly collapse both pods for fast use without needing to flip the goggle down from the helmet. This creates additional flexibility for moving in and out of tight spaces like vehicles, where the user might otherwise accidentally strike their goggles on a door frame or other object when flipped up.

The auto-shutoff feature is optional can be disabled if the user has a need or preference for "always on" or can't risk an accidental shutoff (fast-roping, climbing a ladder, etc.)

Battery Life: The DTNVS uses a single CR123a battery which provides over 25 hours of run time - about 2x that of similar binocular night vision devices that use a AA battery. While some BNVD's with a AA battery include a battery port for an optional battery pack, the DTNVS does not, as its better on-board battery life didn't necessitate taking up additional space on the goggle for a connection port.

Servicing / Maintenance Flexibility: Compared to proprietary or factory built BNVDs like the PVS-31A, the DTNVS uses PVS-14 style optics. As a result, the DTNVS includes an adjustable diopter to closely tailor the focus to the user's eyes (helpful for those that require corrective lenses). Additionally, it provides more flexibility for servicing the device (ex. replacing a scratched or damaged lens) or upgrading the lenses to a lightweight alternative. Inter-pupillary distance stops may be purchased separately and are easily installed (though the majority of users opt to use the device as-is, without them).

Streamlined approach: The DTNVS uses mx10160 format tubes which have automatic gain (brightness) that have become popular in binos like the RNVG and are used in a variety of other goggles such as the GPNVG, PVS-23, ANVIS 9, and others. Controls are simple and familiar: one knob for OFF->ON->IR.

Tech Specs

Finish Matte Black, Corrosion Resistant
Fiber re-enforced polycarbonate body
Capability

Flip-Up On-Off
Side Flip-Up On-Off
Built-in IR LED with “IR-on” indicator in FOV
Low battery indicator in FOV
Waterproof: 20m (66ft) for 2 hours
Corrosion Resistance against salt water

Magnification 1x
Lens System F/1.2
FOV 40°
Range of Focus 0.25 m to ∞
Diopter Adjustment +2 to -6
Infrared Illuminator Yes
Power Supply 1x CR123A
Battery Life Approx. 25 Hours at Room Temperature (CR123A)
Dimensions 76 x 105 x 111 mm
Weight 441-510g, depending on optics and tubes
Standards Exceeding MIL-STD-810G
