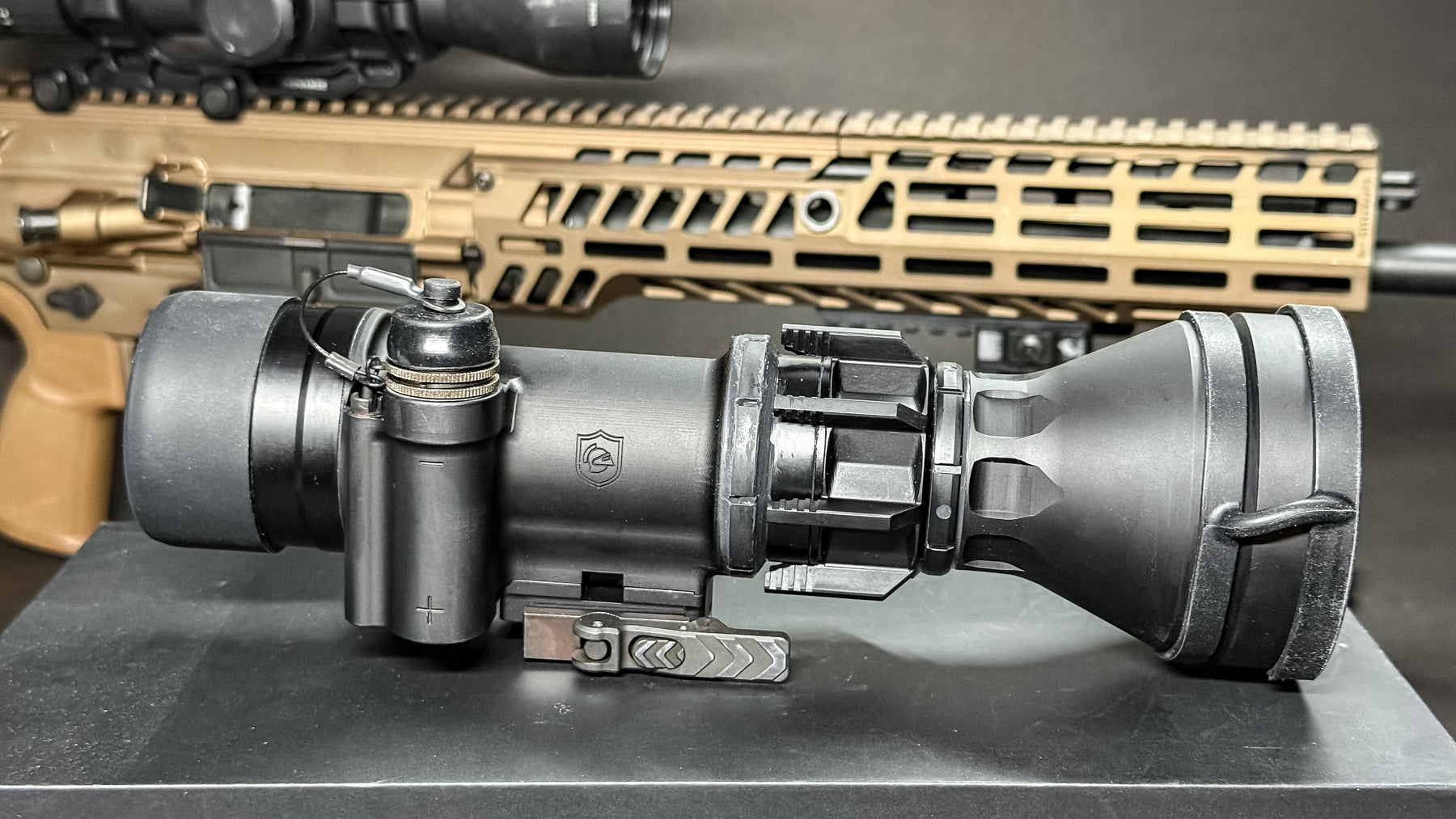

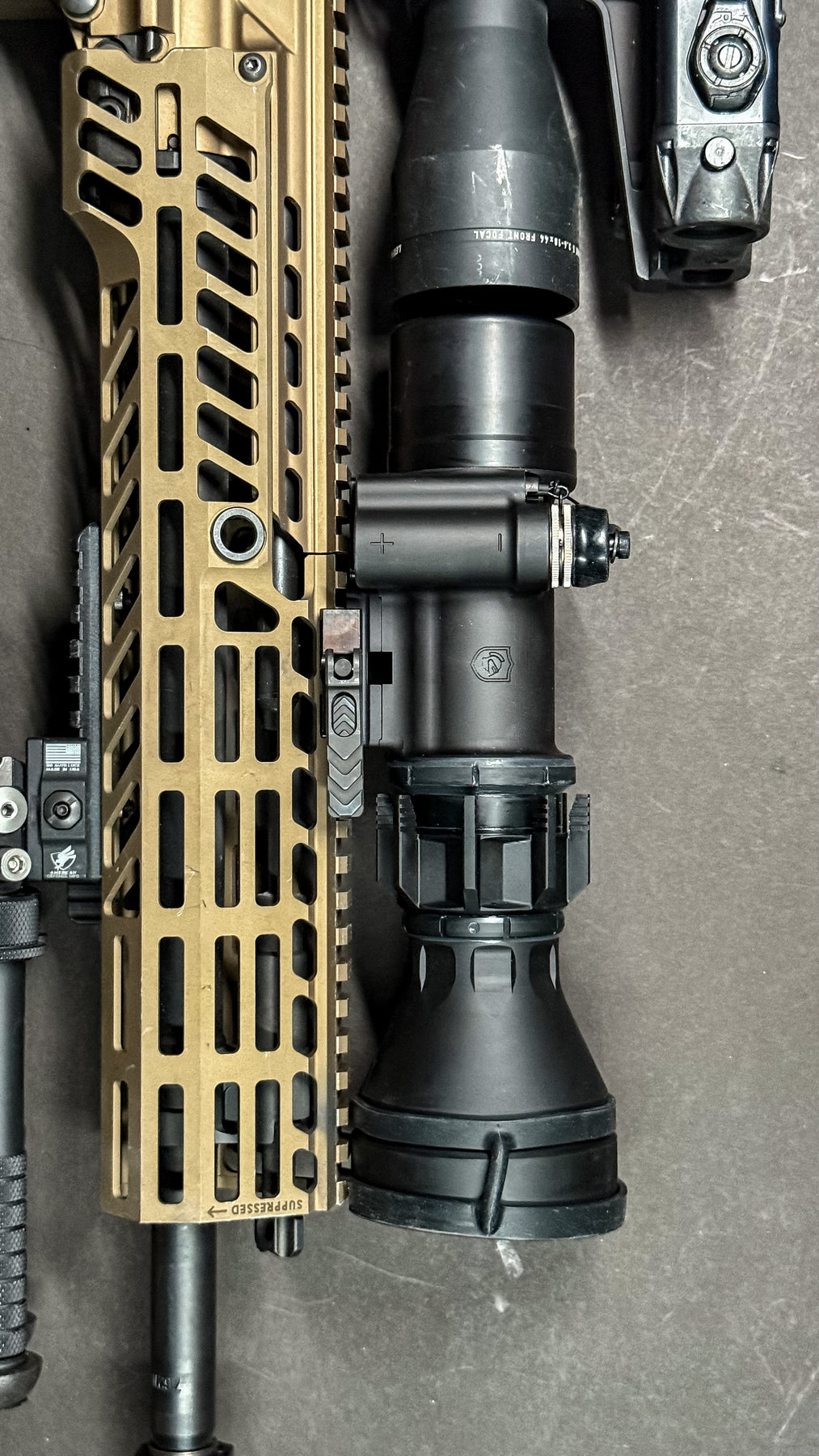

The UNSA3-LR night vision clip on optic is the premiere platform for long range precision in the dark. Based on the venerable PVS-30 platform, the UNSA3-LR is lighter and shorter than the prior generation PVS-30. These optics utilize Elbit Systems 2376+ FOM white phosphor image intensifiers and provide less than 0.5 MOA point of impact shift in your existing day scope setup.
These clip ons come factory new from Knights Armament in Black, and include soft padded case, optical cleaning kit, and backsplash optic shroud wrap.
Manufacturer's Specifications
Size: 9.44 (240mm) long, 3.28 (83mm) high, 1.50 (38mm) to optical centerline
Weight: 2.1 lbs. (0.95 kg)
Finish: Flat Black Matte
Controls: On/Off Gain Control Knob, Manual Focus Ring
Power: One standard AA battery or One DL123 Battery
Battery Life: AA battery exceeds 24hrs, DL123 battery exceeds 36 hrs
Mount: Quick attach/detach, fits the Mil-STD-1913 / STANAG-4694 Rail Configuration
Waterproof: 3 ft. for 4 hours
Operating Temp: -40C(-40F) to 50C(122F)
Optical Characteristics:
Operating Modes: Clip-On Weapon Sight
Lens Design: 120MM Refractive Telephoto Lens
Magnification: 1X (unity)
Focus Range: 20 Meters to Infinity
Boresight: Factory bore sight to within .5 MOA of alignment to day scope point of impact
Image Intensification: ANVIS 18mm Configuration Image Intensified Tubes FOM Restrictions For Export May Apply
Performance Characteristics:
Range: Recognize a Standing Man under Starlight: >800 m
Recognize a Standing Man under 1/4 Moon: >1000 m
Recognize a Vehicle Under Starlight: >1000 m
Recognize a Vehicle under 1/4 Moon: >1500 m
Boresight: Factory Bore Sight to within .5 MOA of alignment to the day scope point of impact
Boresight Retention: < 0.5 MOA over 300 rounds, 300 WIN MAG firing Schedule
Recoil Rating: Tested for up to and including .50 caliber
Cheek Weld: Unchanged
Eye Relief: Unchanged
