Holiday Sale 2025!

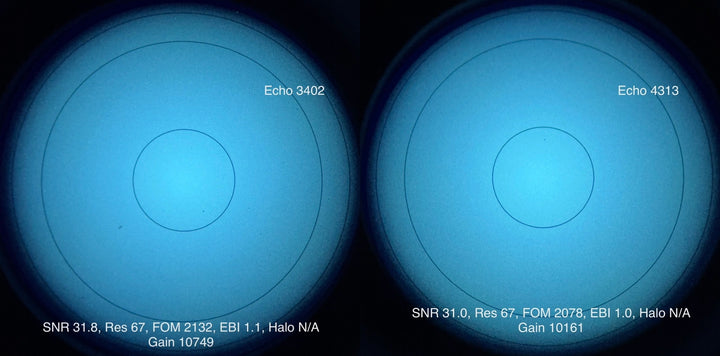

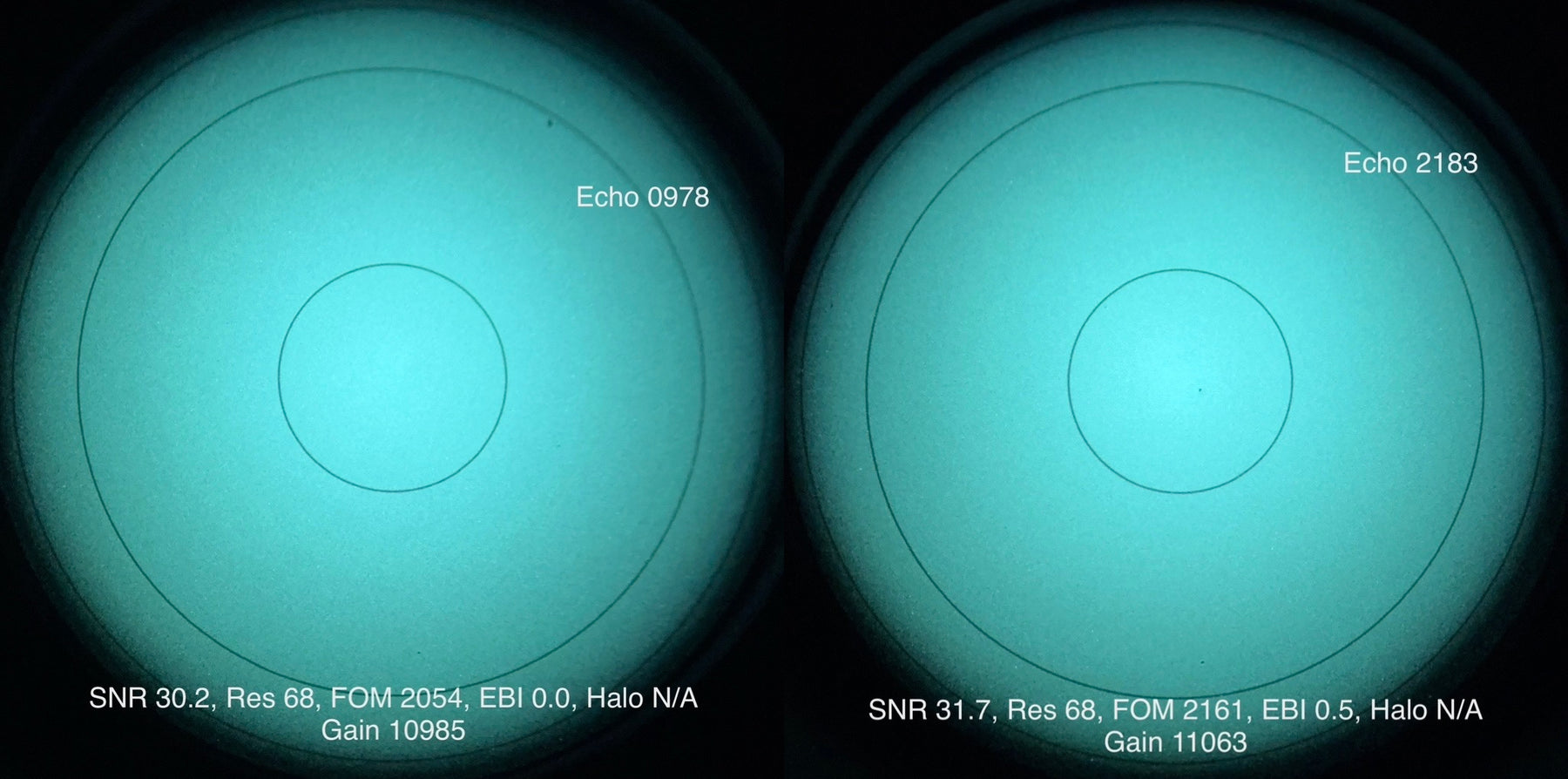

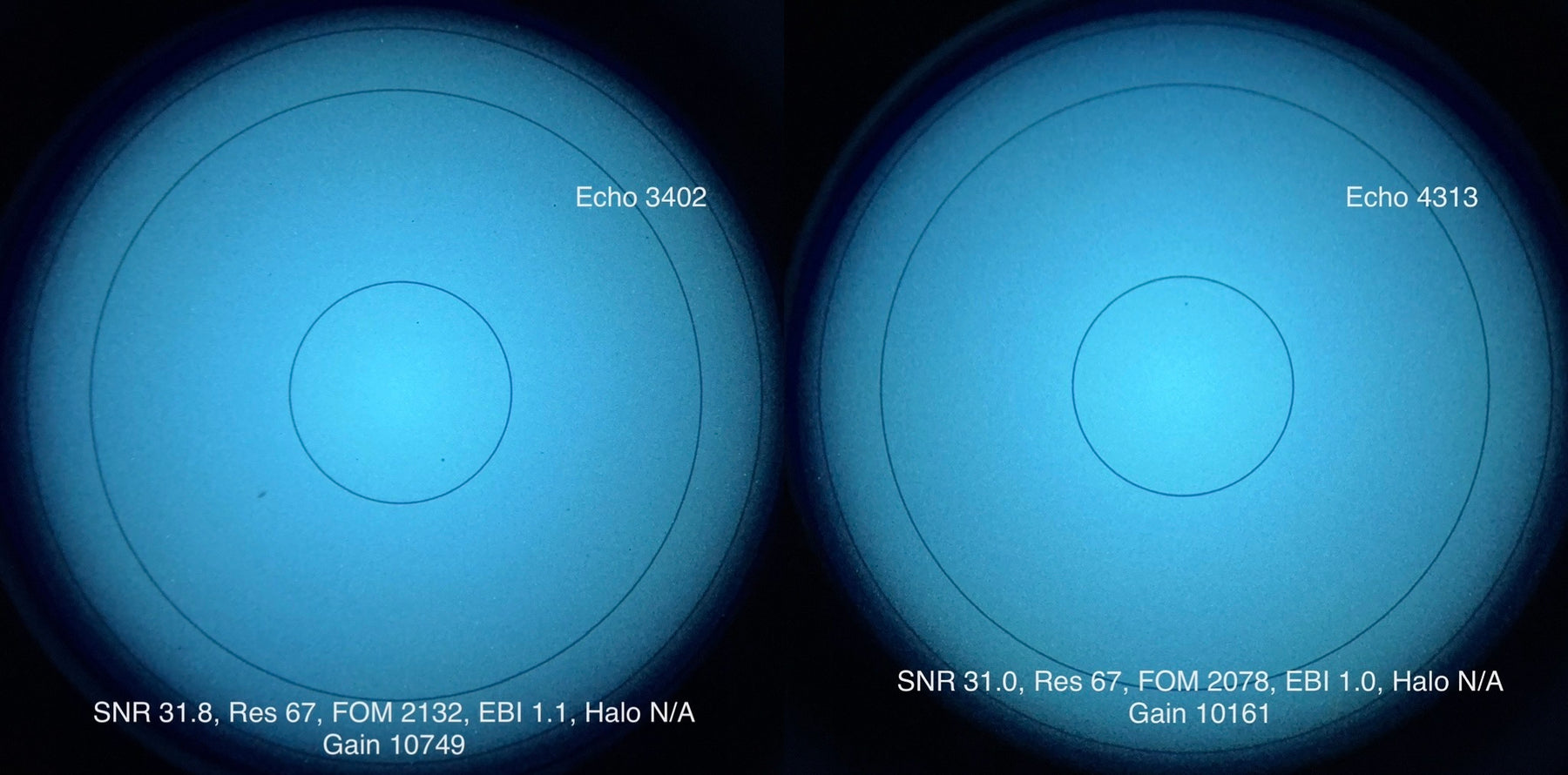

This holiday sale configuration includes the AB Night Vision RNVGA goggle, combined with Photonis Echo white phosphor image tubes and RPO 4.0 lenses for an 18oz, all 7075 aluminum system at an incredible price.
Full kit includes complete RNVGA goggle, day caps and rubber eyepiece covers. Please add our Custom Hard Case or Cole.TAC NVG Soft Pouch if you would also like a storage/transportation solution with these special sales!
These systems will ship within 5 business days of ordering!
Product Details -

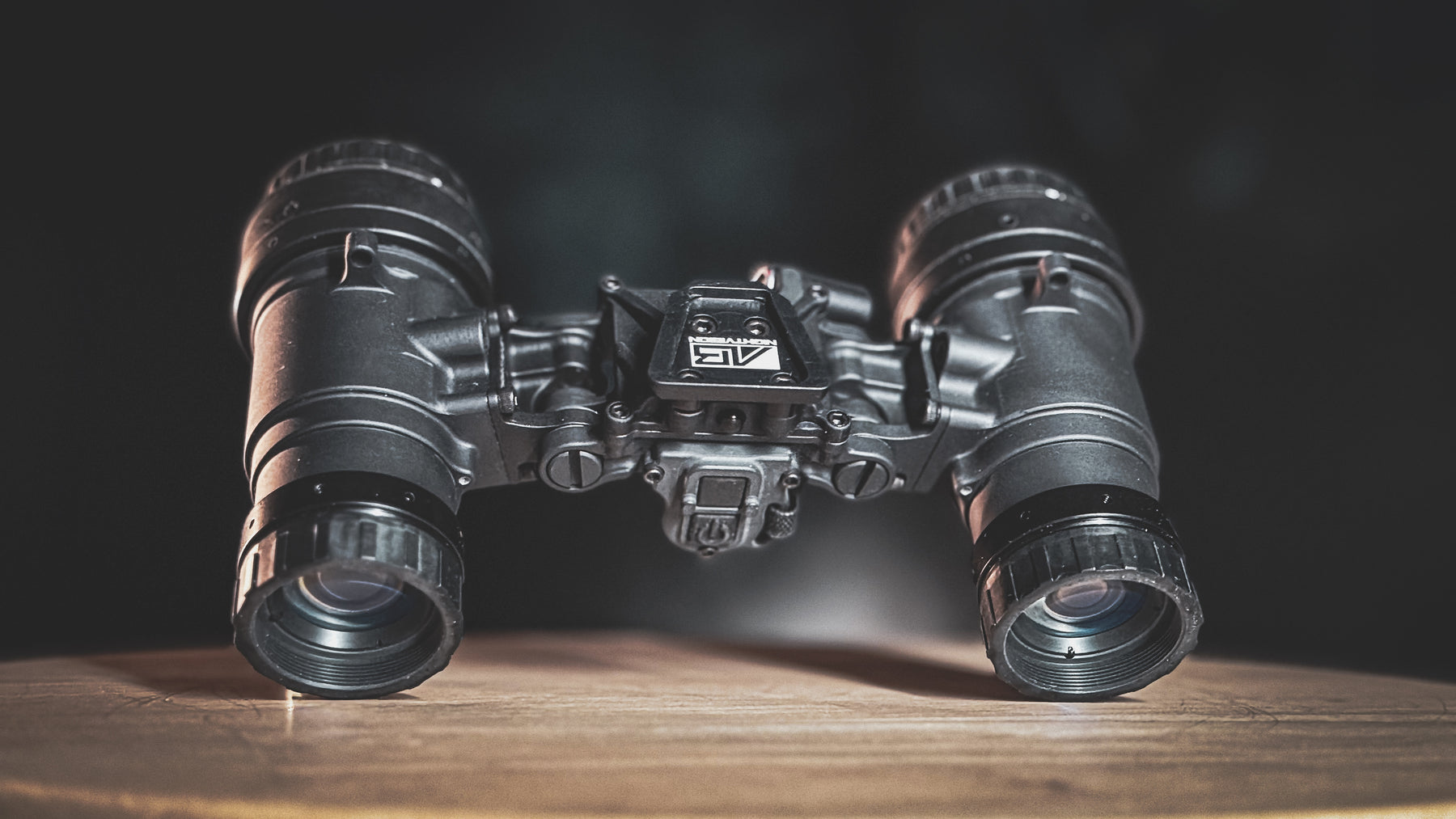

The RNVG-A (aka ARNVG / Articulating Ruggedized Night Vision Goggle) is an exceptional and fully-featured binocular night vision goggle that is designed to meet the demanding needs the most challenging real-world environments.
The housing is billet machined from aircraft-grade aluminum. The ARNVG has surpassed military requirements for MIL-STD-810H drop testing, surviving falls onto bare concrete from heights beyond what lenses and image intensifiers can handle.
The push button switches for power and the Infrared Illuminator in the ARNVG are designed with a fence to prevent inadvertent activation of the IR illuminator. Indicators in the viewing area alert the user of the on/off status of the IR illuminator or if the unit senses a low battery condition. The RNVG-A can be powered by either an onboard 123 battery or auxiliary power from a battery pack using a 4-pin LEMO style connector.
Each optical pod in the RNVG-A can be rotated up out of the user's eyes as needed, freeing one or both eyes for natural sight as conditions demand. The force required to swing the optical pods is user-adjustable on the fly and tension can be adjusted using a coin.
When the goggle is helmet-mounted and in the stowed position, the optical pods can be folded back flat against the helmet to minimize neck strain and better protect the goggle and the user from impacting overhead objects.
The optical pods are designed to turn off automatically when articulated up, which prevents illumination on the helmet when one side is articulated up and ensures that the image intensifiers are "off" in the stowed position with the optical pods folded back against the helmet.
Tech Specs
|
SPECIFICATIONS |
VALUES |
|
POWER SOURCE |
(1) CR123 SIZE BATTERY |
|
FOCUS RANGE |
9.8” to INFINITY |
|
OPERATION TIME |
APPROXIMATELY 16 HOURS ON LITHIUM BATTERY |
|
MAGNIFICATION |
(1X) ONE POWER |
|
FIELD OF VIEW |
40 DEGREES |
|
INTERPUPILLARY ADJUSTMENT |
47mm to over 80mm |
|
DIOPTER ADJUSTMENT |
-6 TO +2 |
|
EYE RELIEF |
25MM |
|
WEIGHT |
176g housing, 578g with std Mil-spec optics and L3 tubes, no battery |
|
DIMENSIONS |
4.14” x 4.2” x 3.2” |
|
IR ILLUMINATOR |
BUILT IN |
|
WATER RESISTANCE |
SUBMERSIBLE TO 66 FT |
|
IR LED & LOW BATTERY INDICATORS |
YES |
|
INTENSIFIER TUBES |
COMPATIBLE WITH MX-10160 STYLE |
|
OPTICS |
COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE |
