This newly updated version of the IrayUSA RH25 takes the extremely popular original version and adds numerous improvements, making it the pinnacle of micro thermal monoculars that can do it all.

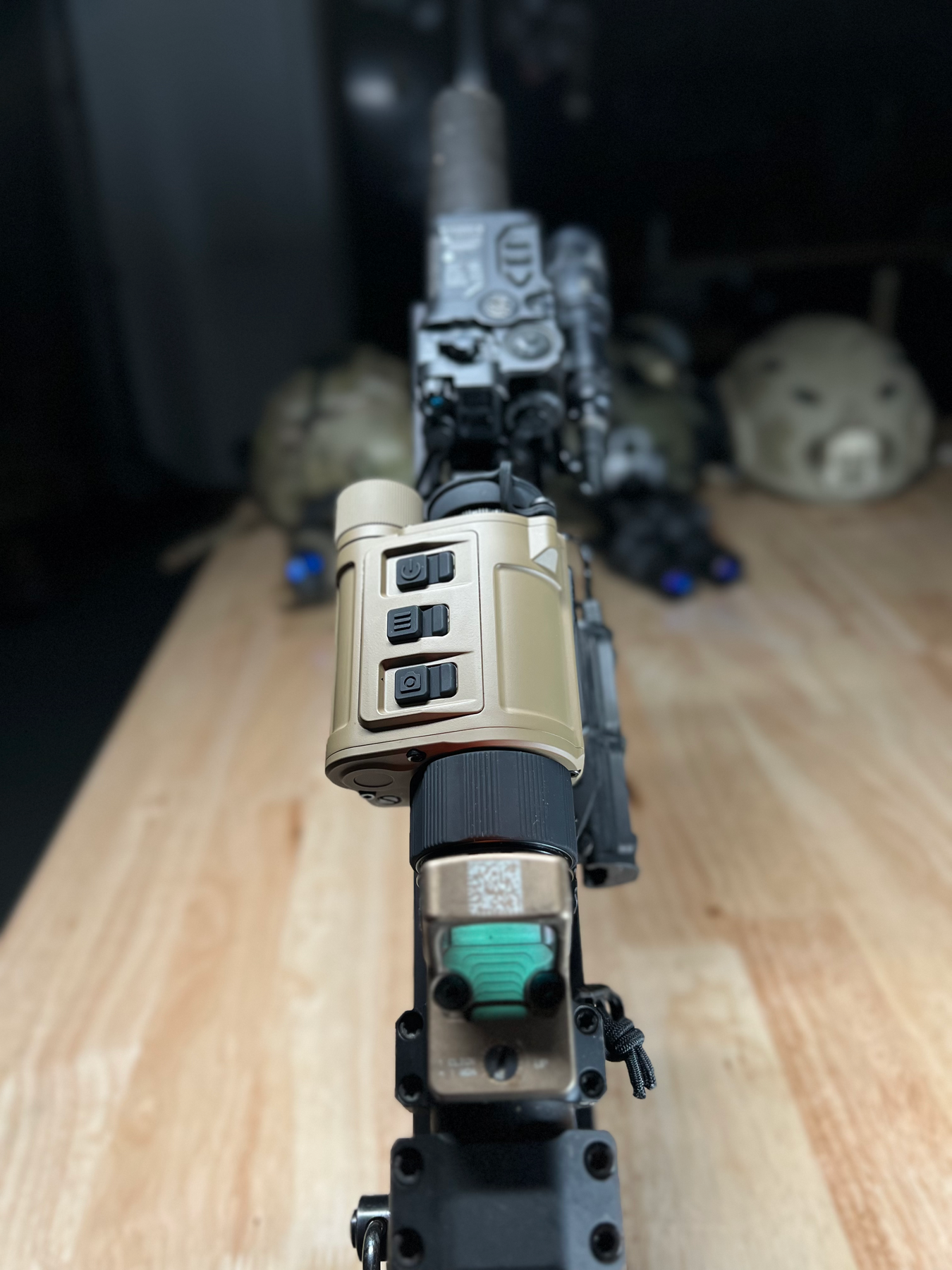

Please note that images show the RH25v2 with certain accessory mounts which are not directly included and must be purchased separately. We recommend purchasing the RH25v2 with the Iray MQD and Iray Pictail accessories for best clip on mounting experience when pairing with 1.54" height optics. Or, for 1.93" height day optics, pair with the Iray Flip to Side Mount.

Manufacturer's Description

The RICO MICRO has been regarded as one of the most powerful and versatile thermal optics on the market. The new RH25 V2 is an evolution that keeps the well-known compact form factor and advanced feature set, while adding user-requested features and system enhancements focused on improving image quality and ease-of-use.

In its newest variation, the RH25 V2 has been updated to provide users with powerful enhancements while retaining the versatility that our customers love; use it as a handheld scanner, helmet-mounted monocular, weapon sight, or thermal clip-on. New models feature a machined magnesium alloy housing to reduce weight. An added USB-C port now allows for simplified file transfer and the ability to power the MICRO from an external battery pack. The internal video recorder now includes crisp audio and 64 GB of internal storage. An improved 1440×1080 AMOLED display and is paired with a new eyepiece that offers more comfortable viewing and clip-on compatibility for optics up to up to 6× magnification.  The new display provides a physical viewing area that is 80% larger than the previous generation, with 97% more total pixels. The MICRO V2 also uses InfiRay’s latest 12 µm sensor, an improved NETD rating of ≤18mK, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.



  • Optics

    Display Type

    AMOLED

    Eye Relief

    45mm

    Objective Focal Length

    25mm

    Digital Magnification

    4X

    Diopter Range

    -5 to +2

    Vertical Angular Field of View

    13.1

    Horizontal Angular Field of View

    17.5

    Focusing Mechanism

    Manual Focus

    Objective F#

    1.0

    Objective Diameter

    25mm

    Objective Lens Material

    Germanium

    Display Resolution

    1440×1080

    Detection Range

    1375 Yards

    Optical Magnification

    1X

    • Features & Performance

      Warranty

      5 Years

      Startup Time

      <10 Seconds, Instant from Standby

      Color Palettes

      White Hot, Black Hot, Red Hot, Color

      Picture-in-Picture

      No

      Storage Capacity

      64GB

      Connector Output

      Power/Data

      User-Updatable Firmware

      Yes

      Mobile App

      Yes

      Run Time

      6.5+

      Power Source

      USB-C External, 18650 Battery

      Stand-by Mode

      Yes

      Reticle

      7

      Connector Type

      USB-C

      External Power Source

      USB-C

      Country of Manufacture

      China

      Wifi

      Yes

      Onboard Recording

      Yes

      Image Capture

      Yes

      • Sensor Specifications

        Sensor Type

        InfiRay MICRO II

        Sensor Pixel Size

        12μm

        Thermal Sensitivity

        <15mk

        Non-Uniformity Correction (NUC)

        Manual, Automatic, Semi-Automatic

        Sensor Frame Rate

        60hz

        Device Technology

        Thermal Imaging

        Sensor Resolution

        640×480
