IrayUSA RL25v2 Thermal Monocular
IrayUSA RL25v2 Thermal Monocular
IrayUSA RL25v2 Thermal Monocular

IrayUSA RL25v2 Thermal Monocular

Regular price $3,749.00 Sale price$3,249.00 Save $500.00
/
Shipping calculated at checkout.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.



This newly updated version of the IrayUSA RL25 follows in the footsteps of the popular RH25 micro thermal monocular series, and takes the multi-functional thermal concept to a new level of value and capability.

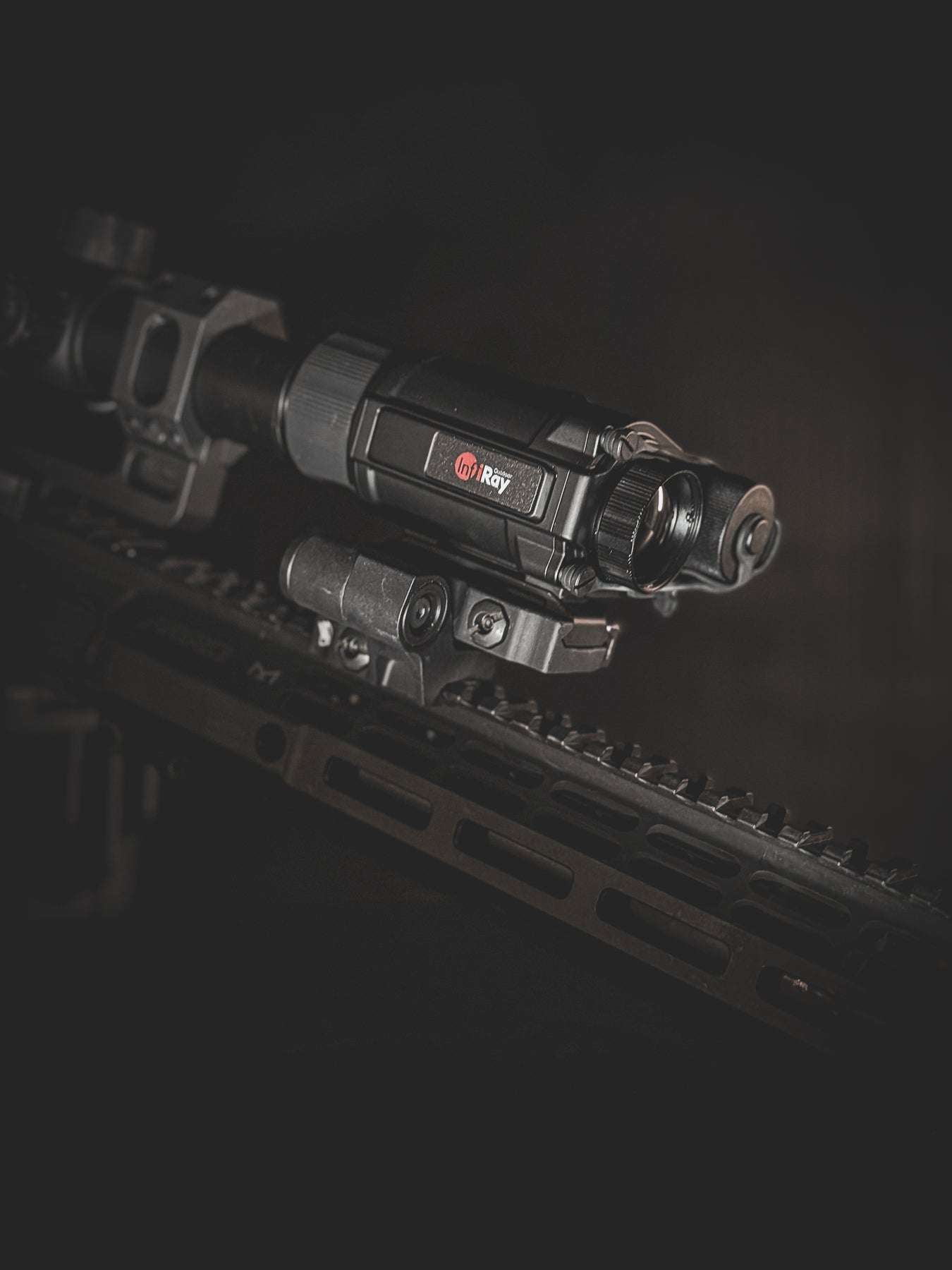

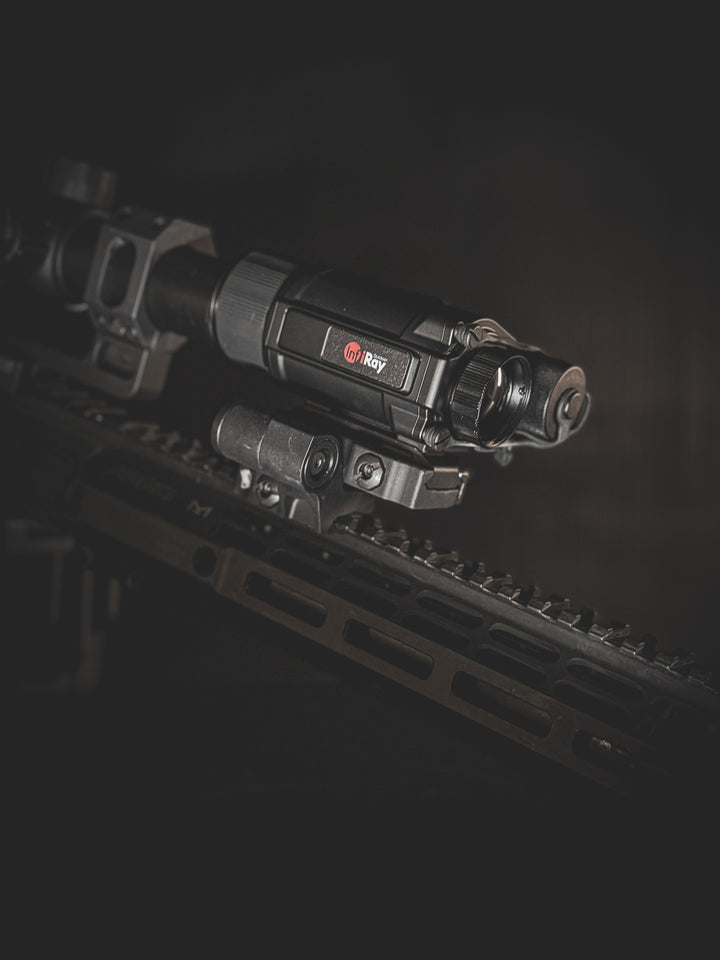

The RL25v2 is, unlike the previous version, clip-on capable when used in conjunction with a normal daytime optic. At the current price point, there is no better clip on capable thermal device at this price point.

Please note that images show the RL25v2 with certain accessory mounts which are not directly included and must be purchased separately. We recommend purchasing the RL25v2 with the Iray MQD and Iray Pictail accessories for best clip on mounting experience when pairing with 1.54" height optics. Or, for 1.93" height day optics, pair with the Iray Flip to Side Mount.

Manufacturer's Description

The new RL25 V2 is an evolution that keeps the well-known compact form factor and advanced feature set, while adding user-requested features and system enhancements focused on improving image quality and ease-of-use.

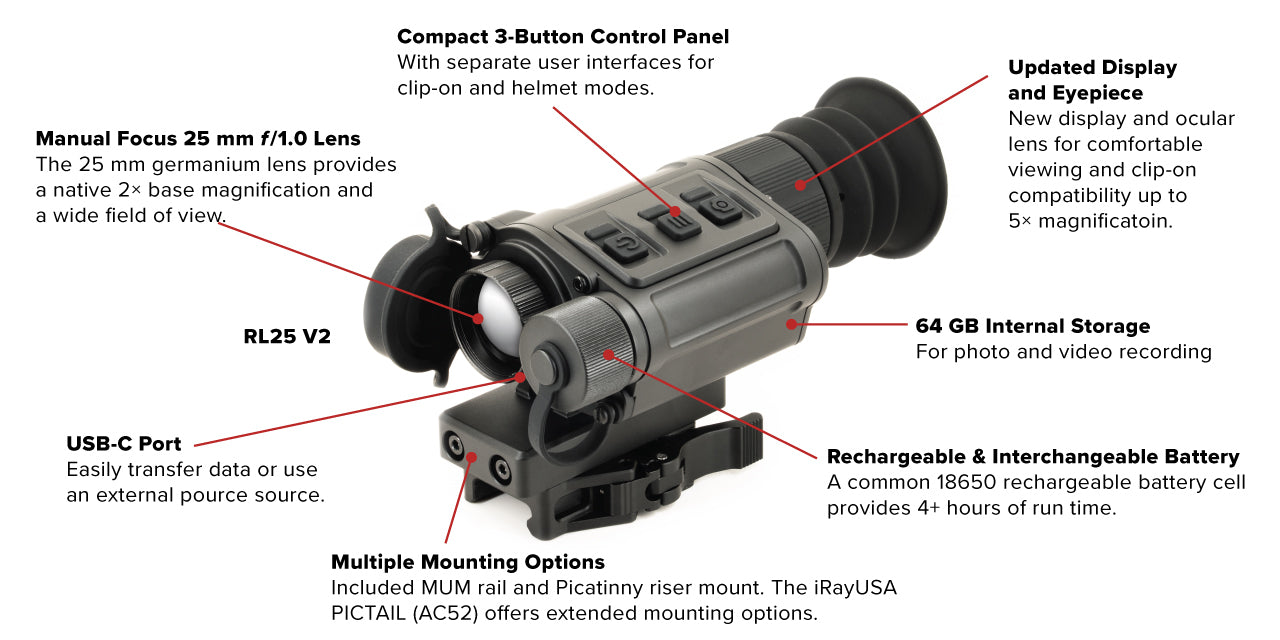

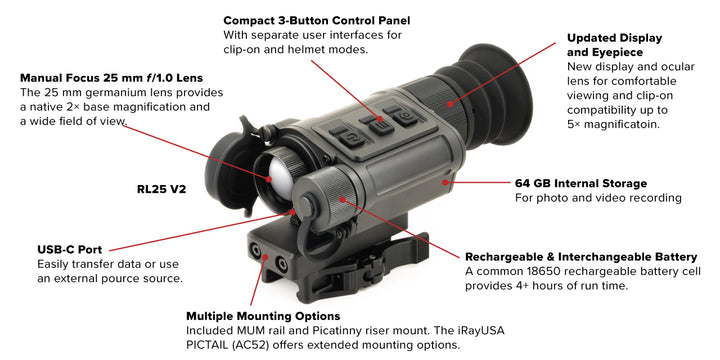

In its newest variation, the RL25 V2 has been updated to provide users with powerful enhancements while retaining the versatility that our customers love; use it as a handheld scanner, helmet-mounted monocular, weapon sight and now a thermal clip-on! The 384x288 12 µm thermal sensor has and improved NETD rating of ≤18mK and is paired with a 25 mm f/1.0 lens to provide a 2x native magnification. New RL25 V2 models feature a machined magnesium alloy housing to reduce weight. An added USB-C port now allows for simplified file transfer and the ability to power the MICRO from an external battery pack. The internal video recorder now includes crisp audio and 64 GB of internal storage. An improved 1440×1080 AMOLED display and is paired with a new eyepiece that offers more comfortable viewing and clip-on compatibility for optics up to up to 6× magnification.  The new display provides a physical viewing area that is 80% larger than the previous generation, with 97% more total pixels.

Technical Specification Breakdown

  • Optics

    Display Type

    AMOLED

    Eye Relief

    45mm

    Objective Focal Length

    25mm

    Digital Magnification

    4X

    Diopter Range

    -5 to +2

    Vertical Angular Field of View

    7.9°

    Horizontal Angular Field of View

    10.5

    Focusing Mechanism

    Manual Focus

    Objective F#

    1.0

    Objective Diameter

    25mm

    Objective Lens Material

    Germanium

    Display Resolution

    1440×1080

    Detection Range

    1375 Yards

    Optical Magnification

    2X

    • Features & Performance

      Warranty

      5 Years

      Startup Time

      <10 Seconds, Instant from Standby

      Color Palettes

      White Hot, Black Hot, Red Hot, Color

      Picture-in-Picture

      No

      Storage Capacity

      64GB

      Connector Output

      Power/Data

      User-Updatable Firmware

      Yes

      Mobile App

      Yes

      Run Time

      6.5+

      Power Source

      USB-C External, 18650 Battery

      Stand-by Mode

      Yes

      Reticle

      7

      Connector Type

      USB-C

      External Power Source

      USB-C

      Country of Manufacture

      China

      Wifi

      Yes

      Onboard Recording

      Yes

      Image Capture

      Yes

      • Sensor Specifications

        Sensor Type

        InfiRay MICRO II

        Sensor Pixel Size

        12μm

        Thermal Sensitivity

        <18mk

        Non-Uniformity Correction (NUC)

        Manual, Automatic, Semi-Automatic

        Sensor Frame Rate

        60hz

        Device Technology

        Thermal Imaging

        Sensor Resolution

        384×288
