A first for the Nocpix line of thermal devices, the new Mini 2 H25 monocular is a hybrid device featuring both the high quality thermal imaging Nocpix is known for combined with a new digital night vision mode for capability in all conditions. With a combination power source of a onboard internal battery for handheld use and a proprietary helmet mounted battery bank source to support longer outings and continuous use, the Mini 2 H25 is truly a first of its kind.

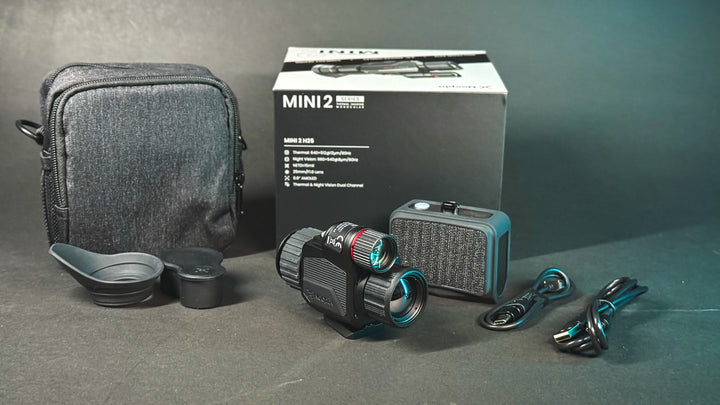

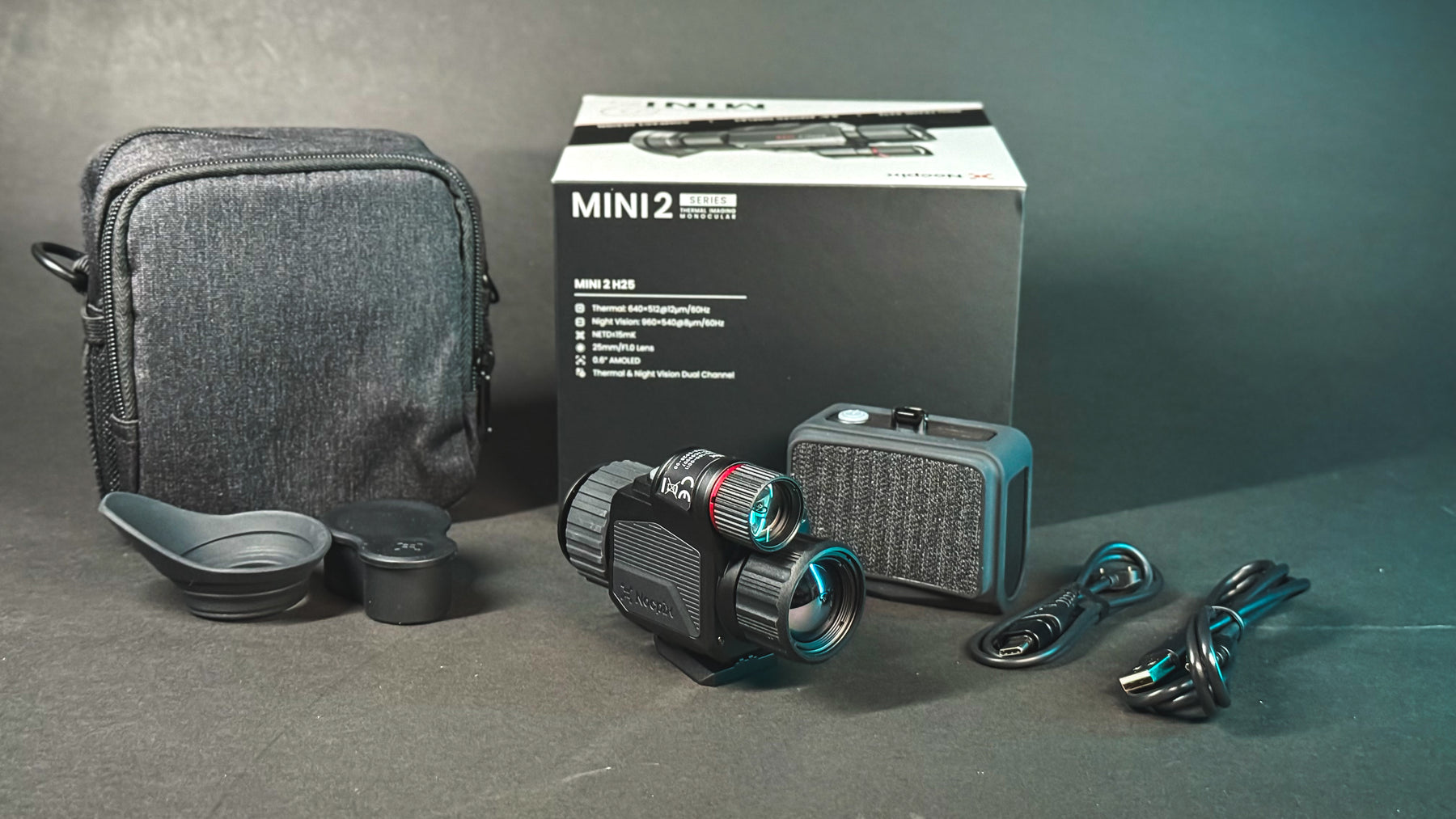

Package includes the H25 dovetail-ready 640 thermal and digital NV monocular, dedicated battery pack, charging accessories, manual, and soft pouch. In addition to this every Mini 2 H25 monocular sold by Apollo Gear Co will include a FREE Microbat Systems UBPRS battery pack retaining strap to aid in utilizing the included battery pack for the H25.
Manufacturer's Description of the Product
The Nocpix MINI2 H25 is a compact, lightweight thermal imaging device engineered for both handheld and helmet-mounted operation. Its versatile design enables seamless transition between use as a handheld monocular and integration with a helmet-mounting system for hands-free applications. Equipped with a high-performance 60 Hz, 12 μm thermal sensor and advanced Reality+ image processing, the MINI 2 delivers exceptional image clarity and detail across a wide range of conditions. The system features a 640×512 resolution thermal core paired with a 1280×1024 AMOLED display, providing a sharp, high-contrast viewing experience within a highly portable form factor. In addition to thermal imaging, the MINI2 incorporates digital night vision functionality with optional thermal overlay, allowing users to utilize fusion imaging for enhanced target recognition and situational awareness. The device also includes onboard audio and video recording capabilities, supported by 32 GB of internal storage, enabling users to capture, store, and review critical moments directly from the unit.
- Dual-sensor imaging system allows the user to transition between digital night vision, thermal, and thermal fusion overlay

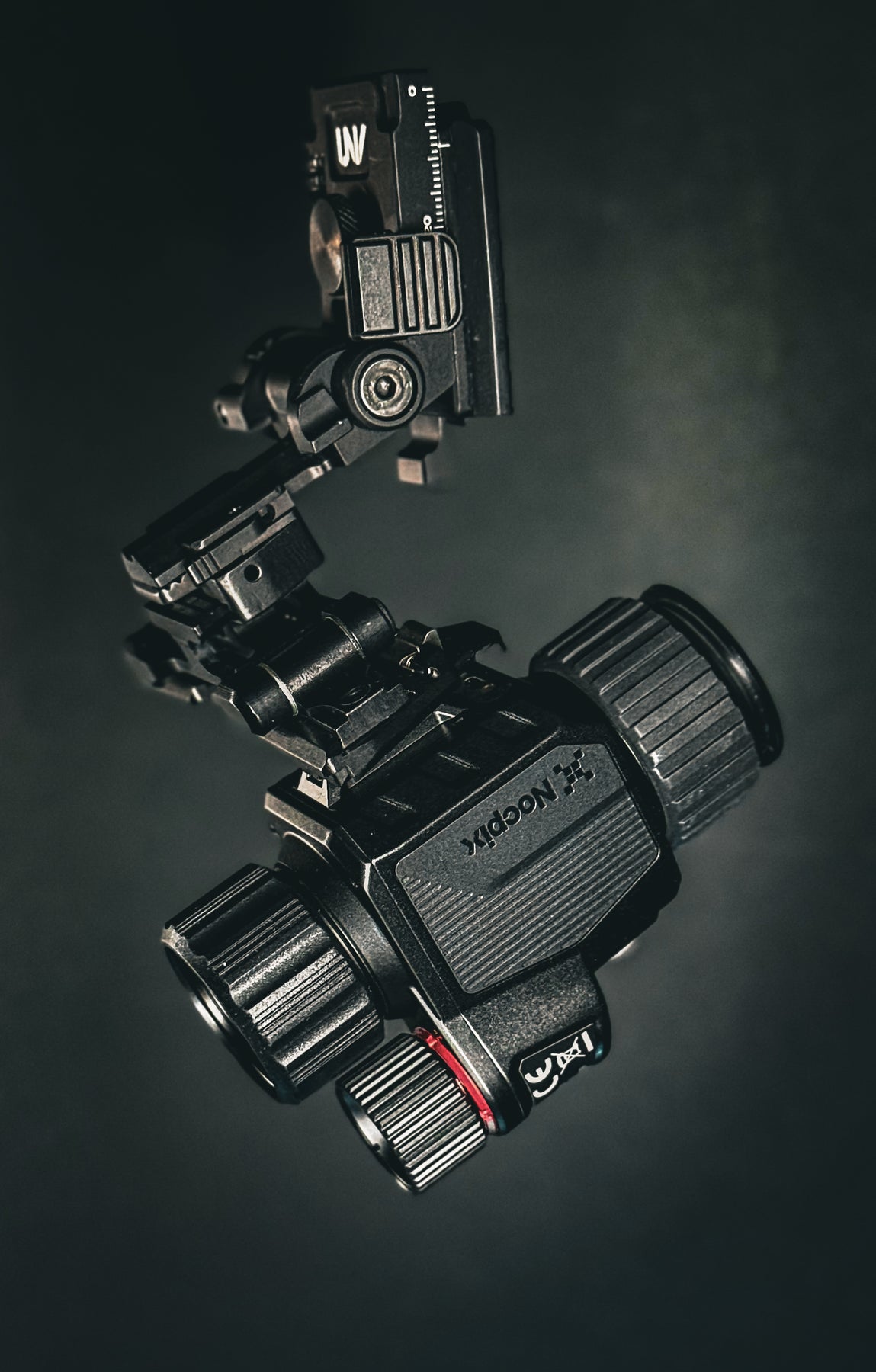

- Lightweight helmet mounted design with integrated dovetail shoe
- Internal battery and the included external helmet mountable battery pack allows 4+ hours of operation
- Onboard photo, video, and audio recording.
Manufacturer's Tech Specifications
Sensor
Nocpix 640 (640x512 NV 960x540) 60hz
Objective Lens
25 mm F/1.0
NETD
<15mk
Magnification
Native/Optical: 1X, Digital: 4x
Data Sheet
Product Manual
Device Technology
Thermal Imaging
Pixel Size
12 µm
Display Resolution
AMOLED 1280×1024
Detection Range
1420 yards
Color Palettes
White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
Reticles
N/A
Rangefinder
N/A
